What is OSNR (Optical Signal to Noise Ratio) in Fiber Optics

By RF Wireless Expert Team

OSNR (Optical Signal-to-Noise Ratio) is a key performance metric used in fiber optic communication systems to measure the ratio of optical signal power to noise power. Higher OSNR values indicate better signal quality, improved transmission performance and enhanced reliability in optical networking environments. It’s a crucial parameter for estimating the performance of optical networks. It also helps in calculating the Bit Error Rate (BER) of an optical system.

OSNR Measurement: Linear Interpolation Method

According to the linear interpolation method, the following steps are involved in measuring OSNR:

  • First, measure the total signal power within the passband channel.
  • Next, measure the noise power, specifically the Amplified Spontaneous Emission (ASE) noise, in the gaps between optical channels. This measurement is typically taken over a 0.1 nm bandwidth.
  • Finally, use the equation below to calculate the OSNR value.

OSNR measurement

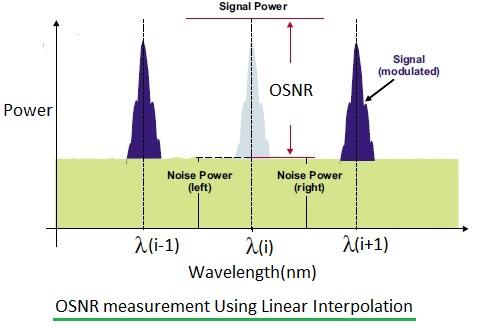

Figure 1: OSNR measurement with signal of interest and undesired noise power on the left and right side of the wanted optical signal.

OSNR is expressed using the following equation:

OSNR=PSIGNAL(PNoise(L)+PNoise(R))2OSNR = \frac{P_{SIGNAL}}{\frac{(P_{Noise(L)} + P_{Noise(R)})}{2}}

OPS Method to Measure OSNR

OPS stands for Optical Polarization Splitting Method. It’s used to measure in-band OSNR. This technique utilizes optical polarization controlling and splitting.

Figure 2 below shows a block diagram of the OPS method used by JDSU.

OPS method to measure OSNR

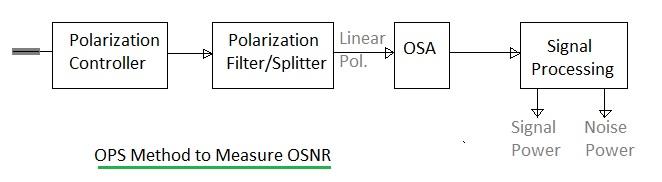

Figure 2: Block diagram of the OPS method used by JDSU.
