RF Amplifier vs. RF Oscillator: Key Differences Explained
Advertisement
This article clarifies the differences between an RF amplifier and an RF oscillator, comparing them based on various essential parameters.
RF Amplifier
An RF amplifier is a device designed to amplify RF signals to a desired power level. Essentially, it boosts the power of the signal, ensuring it meets the requirements of the link budget or functions correctly with other devices in the system.

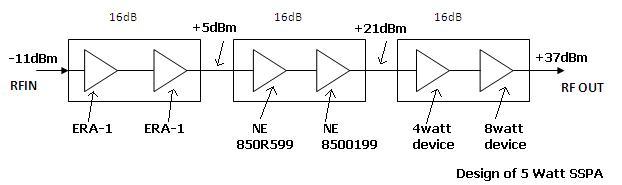

Example: A 5W Solid State Power Amplifier (SSPA) used in a VSAT system, built using discrete MMIC amplifier ICs.
RF amplifiers are commonly used:
- To provide gain to a signal before transmitting it through an antenna.
- To boost the signal after reception, maintaining a good Signal-to-Noise Ratio (SNR).
RF Oscillator
An RF oscillator is a device that generates a stable RF signal. It’s used to create the RF carrier signal needed in modems (modulator-demodulators) or to generate the Local Oscillator (LO) signal required in transceivers.

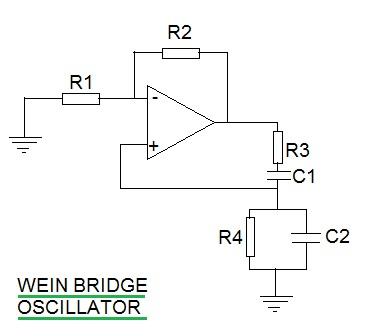

Example: A Wien bridge oscillator built using an op-amp, resistors, and capacitors.
The frequency equation for a Wien bridge oscillator is:
f = 1 / (2 * π * sqrt(R3 * R4 * C1 * C2))
Oscillators are usually built using either Inductor (L) and Capacitor (C) components or Resistor (R) and Capacitor (C) components. Common types of oscillators include:
- Colpitts oscillator
- Clapp oscillator
- Hartley Oscillator
- Crystal oscillator
