What is OCXO SC Cut Crystal Oscillator: Advantages and Disadvantages

An SC-cut Oven Controlled Crystal Oscillator (OCXO) is a precision frequency source that maintains a quartz crystal at a constant temperature for exceptional stability. It is widely used in satellite communication, telecom infrastructure, aerospace, and precision measurement systems where low phase noise and accurate timing are essential.

OCXO Working Principle

The term OCXO refers to an Oven Controlled Crystal Oscillator. It is widely used in communication devices due to its ability to automatically keep the temperature of the crystal constant, and consequently, the frequency output stable despite ambient temperature variations.

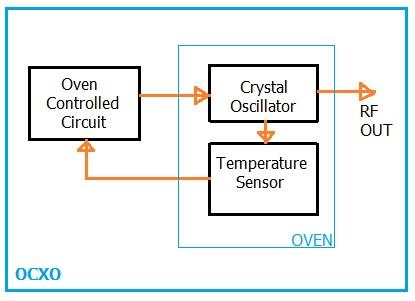

It provides a highly stable frequency output. Figure 1 depicts the inside of an OCXO crystal oscillator type.

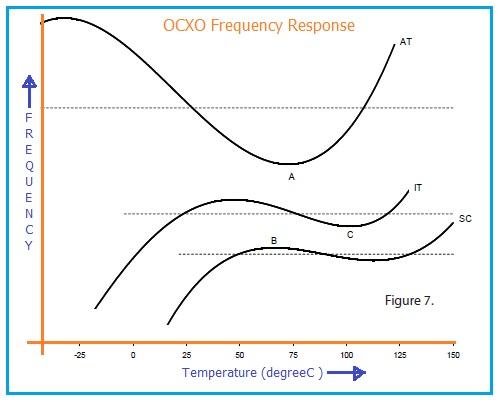

Figure 2 depicts the temperature versus frequency response curve of all three OCXO types: AT cut, IT cut, and SC cut.

Benefits or Advantages of OCXO SC Cut Crystal Oscillator

1. It offers higher frequency stability over a wide temperature range compared to other crystal types.
2. It offers a high turning point or higher operating temperature.
3. It offers improvement in aging performance which is about 2-3 times better compared to AT cut crystal type.
4. It has a lower warm-up time compared to the AT cut type. Hence, it gets settled to the final frequency faster.
5. Due to higher Q (Quality factor) performance, it offers better phase noise specification.
6. It offers lesser G-sensitivity due to the stress compensation feature.
7. The SC crystal is less frequency sensitive against change in physical orientation compared to the AT crystal type.
8. The SC cut crystal generates a lower amplitude spurious output when subjected to vibration.

Drawbacks or Disadvantages of OCXO SC Cut Crystal Oscillator

1. Due to the high turning point, it has a sharper roll-off at low temperatures, and hence OCXOs are used only in ovenized types of oscillators and not in other configurations such as TCXOs or VCXOs etc.
2. Manufacturing costs are high due to increased labor costs. This is because of poorer yields of SC cut compared to AT cut type.
3. Delivery or lead time is higher compared to AT cut.

Summary

An SC-cut OCXO is a high-precision crystal oscillator designed to deliver extremely stable and accurate frequency generation. It offers excellent frequency stability, low phase noise, and superior timing accuracy. However, it requires higher power consumption, longer warm-up time, and increased manufacturing cost.
