Wi-Fi 8 Total Latency Calculator & Formula : 802.11bn

By RF Wireless Expert Team

This page provides a WiFi8 total latency calculator, also known as a WLAN 802.11bn end to end delay calculator. Total latency in Wi-Fi 8 networks is a critical performance metric that encompasses various delay components including transmission delay, propagation delay, processing delay, and queuing delay.

Inputs

Outputs

This WiFi-8 total latency calculator utilizes the 802.11bn total latency formula.

EXAMPLE: 802.11bn Wi-Fi 8 Total Latency Calculator:

Scenario: A factory robot needs to receive a 1500-byte command in under 500 microseconds (0.5 ms) with minimal jitter.

  • INPUTS:

    • The user defined maximum allowed latency = 500 µs
    • Jitter tolerance = 50 µs
    • Packet size = 1500 bytes
    • Data rate = 20 Gbps
    • Distance to AP = 15 meters
    • Time Wi-Fi 8 device wait for clear channel = 100 µs

  • OUTPUT:

    • Transmission_Delay = 0.6 µs
    • Propagation_Delay = 0.05 µs
    • Total Latency = 100.65 µs

Results Interpretation:

  • Is 100.65 µs ≤ 500 µs ? Yes.
  • Is 10 µs jitter ≤ 20 µs ? Yes.
  • The calculator would output: “Link is viable for this deterministic application.”

Wi-Fi 8 Total Latency Formula as per IEEE 802.11bn

The following formula or equation is used for the WiFi-8 total latency calculation:

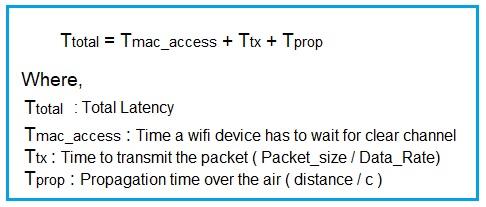

Wi-Fi 8 Total Latency Formula
