BLE Digital Car Keys: Architecture, Working, Benefits & Limitations

By RF Wireless Expert Team

BLE digital car keys enable smartphones and other authorized devices to communicate wirelessly with a vehicle for functions such as digital key detection, authentication, locking, unlocking and access control. This article explores BLE digital car key architecture, how BLE based vehicle access works, hardware and firmware design, communication flow and key security considerations.

A typical system involves a vehicle side BLE controller, antennas, electronic control units, a secure key management mechanism, and a mobile device or digital key credential. Because vehicle access is a security sensitive application, the design must address device authentication, secure pairing or key establishment, encryption, privacy, replay protection, credential management and resistance to unauthorized access. Bluetooth’s security architecture includes pairing, bonding, authentication, encryption and message integrity mechanisms.

Working of BLE Digital Car Key Architecture

BLE Digital Car Keys

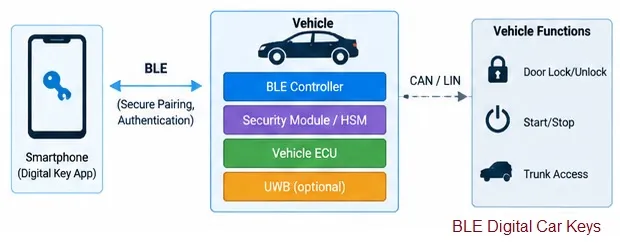

The figure depicts generic architecture of BLE digital car key use case. As shown, digital key app is installed in the smartphone and is used to communicate with the car to lock or unlock. The automotive car hardware includes automotibe grade BLE controller, security module, ECU and antennas. CAN and LIN protocols are used inside the car for communication between BLE controller and car modules (door, start/stop, windows, trunk access etc.)

Following steps describe working of this automotive digital key based system.

  • Smartphone authenticates with the car using BLE messages over the air using radio frequency. Now-a-days UWB technology has been incorporated for precise distance measurement as well as intruder threat protection.
  • Security features used include pairing, encryption, authentication, secure element/HSM.
  • Vehicle can be locked or unlocked and may allow start/stop based on verified key.

Benefits of BLE Digital Car Keys

  1. Keyless Convenience: Enables smartphones to replace physical keys for vehicle locking, unlocking and access.
  2. Low Power Consumption: BLE consumes relatively low power, making it suitable for continuous or periodic vehicle key detection.
  3. Secure Communication: Supports authentication, encryption, message integrity and secure key establishment.
  4. Easy Credential Management: Digital keys can be provisioned, shared, updated or revoked through software.
  5. Multi-Device Support: Allows multiple authorized smartphones or digital keys to access the same vehicle.
  6. Vehicle Integration: Can communicate with ECUs through CAN/LIN for doors, trunk, immobilizer and start/stop functions.
  7. Scalability: Can be combined with cloud services and mobile applications for centralized key and user management.

Limitations of BLE Digital Car Keys

  1. Limited Distance Accuracy: BLE RSSI is affected by obstacles and RF conditions, making precise proximity detection difficult.
  2. Relay Attack Risk: BLE communication alone may be vulnerable to relay attacks; UWB based secure ranging can provide stronger proximity verification.
  3. Smartphone Dependency: Access may be affected by phone battery level, OS restrictions, hardware compatibility or device availability.
  4. RF Interference: Vehicle structure, electronics and antenna placement can affect BLE range and reliability.
  5. Security Complexity: Requires secure credential storage, key management, replay protection, secure boot and hardware backed security.
  6. Privacy Concerns: Digital key systems may handle sensitive information such as device identity, user identity and access history.
  7. Higher System Cost: Automotive grade BLE controllers, security hardware, antennas and optional UWB technology increase overall system complexity and cost.

Summary

Modern digital-key architectures can combine BLE for communication and discovery with UWB for precise ranging. UWB can provide more accurate distance and location information and can help mitigate relay-related threats. Refer UWB Digital Key for Car Theft Protection >>.
