Microstrip filter Types and key applications

Introduction : Microstrip filters offer cost effective, PCB based solution for RF filtering needs. From stepped impedance and stub filters to interdigital and combline band pass designs, microstrip filters are ideal for any application where size, low cost and integration matter.

What is a Microstrip filter?

A microstrip filter is a planar RF/microwave filter implemented using microstrip transmission line sections. These lines are metal traces printed on dielectric substrate above ground plane. It forms distributed resonators and coupling structures to shape frequency response. These filters are compactness, low cost and easy to integrate on PCB. Moreover as microstrip is open from top, it is easy to troubleshoot.

Types of Microstrip filters

There are various configurations which lead to different types in microstrip filters.

  1. Stub-Loaded Filters
  2. Stepped-Impedance Filters
  3. Directly Coupled Resonator Filters
  4. Parallel-Coupled Line Filters
  5. Interdigital Filters
  6. Combline Filters

Microstrip filter structure types

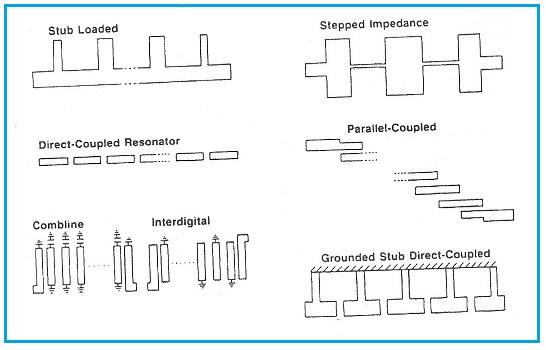

Figure 1: Microstrip filter structure types

Applications of Microstrip filters

Following are various applications as per different characteristics of microstrip filters.

  • Wireless Communications (4G/5G/IoT) : Bandpass filters integrated on PCB for compact, efficient signal routing
  • Harmonic Suppression (Radar/Satcom) : Wide stopband microstrip filters to eliminate transmitter harmonics
  • Defense and Aerospace Systems : Rugged, high performance filters for communication and EW hardware
  • Radar and Test and Measurement Equipments : Precise filtering for analyzers and radar receiver circuits
  • Tunable/Reconfigurable Filters : Frequency adjustable filters for multi-band dynamic wireless applications

Conclusion: Microstrip filters strike the right balance between accessibility and performance, making them ideal for embedded RF applications. For demanding performance or miniaturization needs, more advanced filter technologies may offer a better fit.
