What are Pi Filter Circuits: Advantages and Disadvantages

A Pi filter circuit is an electronic filter consisting of two capacitors separated by an inductor or resistor, forming a π-shaped configuration. It effectively reduces ripple and electrical noise in power supplies, improving voltage stability and signal quality in electronic circuits.

Introduction

There are three basic impedance matching filters:

• L network
• T network
• π network

L networks are straightforward to implement because they only require two components. Moreover, L networks don’t change the Q factor of the circuit.

T and π networks are more complex than L networks, but they are often preferred because they generate higher output voltages with lower ripple factors.

What is a Pi Filter?

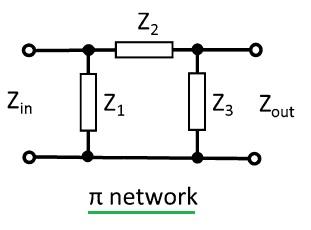

A network with components (L, C, R) connected in a π shape is called a pi network. A filtering device that uses L and C in a π shape is called a Pi filter. It can be used with both full-wave and half-wave rectifiers.

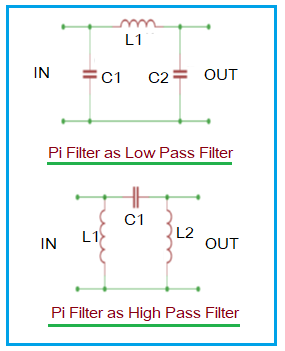

Figure 2 shows the use of a Pi filter as a Low Pass Filter (LPF) and a High Pass Filter (HPF).

• LPF Configuration: Two capacitors are connected in parallel at the input and output, while an inductor is connected in series.
• HPF Configuration: Two inductors are connected in parallel at the input and output, while a capacitor is connected in series.

Pi Filter Equations: Low Pass Filter

• Cut-off frequency (Fc): Fc = 1 / (π * √(L * C))
• Capacitance (C1, C2): C = 1 / (Z0 * π * Fc)
• Inductance (L1): L = Z0 / (π * Fc)

Where Z0 is the characteristic impedance (typically 50 or 75 Ohms).

Pi Filter Equations: High Pass Filter

• Cut-off frequency (Fc): Fc = 1 / (4 * π * √(L * C))
• Capacitance (C1): C = 1 / (4 * Z0 * π * Fc)
• Inductance (L1, L2): L = Z0 / (4 * π * Fc)

Where Z0 is the characteristic impedance (typically 50 or 75 Ohms).

Advantages of Pi Filters

1. Easy to implement in RF circuit designs.
2. The three components are easily accessible for desoldering and resoldering.
3. Provides higher output DC voltages.
4. Delivers output with significantly lower AC ripple.
5. Offers better load regulation compared to L-type filters.

Disadvantages of Pi Filters

1. Requires high value capacitors, making them bulky. This is a major concern in designs with space constraints.
2. Not suitable when load current varies, as they offer poor voltage regulation.
3. Not suitable for high current flow. This necessitates bulky and expensive series inductors.

Summary

A Pi filter is a power supply filter that minimizes ripple voltage and electrical noise using a capacitor-inductor-capacitor configuration. It improves DC output quality and enhances circuit performance.
