Fast Recovery Diode: 5 Key Advantages & Disadvantages

By RF Wireless Expert Team

Introduction : Fast recovery diodes are designed to switch off quickly in reverse bias, minimizing reverse current and reducing switching losses. Ideal for high frequency or high speed switching applications, these diodes balance performance with trade offs.

Fast Recovery Diode Circuit Working

Switching applications require rapid transition between conducting state and blocking state.

Fast Recovery Diode

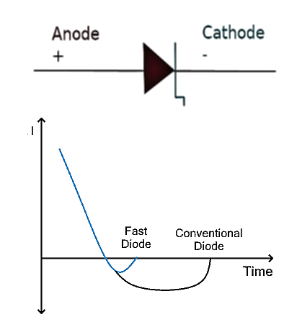

The figure depicts circuit symbol of fast recovery diode with its voltage vs time curve. As shown, it switches very fast compared to conventional diode.

Advantages of Fast Recovery Diode

Following are some of the benefits of fast recovery diode.

  1. It offers short reverse recovery time.
  2. Due to its quick recovery, less energy is wasted during switching transitions. It improves overall efficiency.
  3. It offers better thermal performance as less heat is generated from switching losses.
  4. They are suitable for high frequency circuits such as SMPS, rectifiers, inverters etc. where rapid switching is required.
  5. FRDs can often tolerate higher reverse voltages than some fast diodes like certain Schottky types.

Disadvantages of Fast Recovery Diode

Following are some of the drawbacks of fast recovery diodes (FRDs).

  1. They generally have larger forward voltage drop compared to Schottky diode.
  2. Leakage currents in reverse bias tend to increase.
  3. Improving reverse recovery time often involves compromising on other characteristics of the diode.
  4. Though FRDs reduce swiching losses, the diode still dissipate power. Heat must be managed properly.
  5. FRDs are complex to manufacture and are expensive too.

Conclusion: Fast recovery diodes bring significant benefits in reducing switching losses, improving efficiency and enabling high speed operation. However, they also carry downsides such as higher cost, possible leakage and higher reverse recovery energy under certain conditions. Knowing these trade offs helps engineers choose wisely for the specific demands of their circuitry.
