Standard Diode in Level Shifting: Working & Advantages

Introduction : Level shifting is essential where different circuit blocks operate at different voltage levels. A standard diode can shift voltage levels by introducing a known forward voltage drop, allowing interfacing between disparate voltage domains. Here we explain how level shifting works using diodes and highlight advantages including simplicity, low cost and minimal additional circuitry.

Diode in Level Shifting circuit

This circuit is used to convert signals between different voltage domains. It is essential for interfacing logic families and mixed voltage systems.

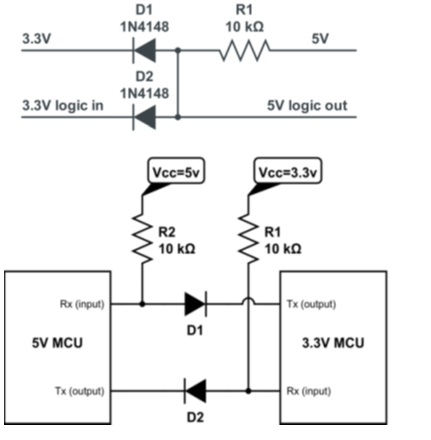

Diode in level shifting

The figure-1 depicts level shifting circuit used to connect TTL logic family operating at 5V with CMOS logic family operating at 3.3V.

Advantages of level shifting diode

Following are some of the benefits of diode level shifters.

  1. These shifters require very few components and hence it keeps circuits simpler to design.
  2. They are inexpensive and hence provide cheap solution compared to ICs or complex circuits.
  3. Diode level shifters consume less power when there is no switching.
  4. Due to their small footprint, level shifter circuits are compact in size.
  5. For many applications, they offer adequately fast switching speed.

Conclusion: Using a standard diode for level shifting is a practical way to bridge voltage differences between circuit components. Its simplicity, cost-effectiveness, and ease of implementation make it an attractive option for many designs.
