What is SAW Resonator: Top Manufacturers for RF applications

A SAW resonator is a frequency-selective device that employs Surface Acoustic Wave technology to generate stable resonance characteristics in RF circuits. These resonators are commonly used in oscillators, frequency control systems, wireless communication modules, automotive electronics, and industrial applications requiring precise frequency references.

A SAW (Surface Acoustic Wave) device that oscillates at a specific radio frequency based on its design is known as an RF SAW resonator.

SAW Resonator Selection Guide

When choosing a SAW resonator, consider these technical specifications:

• Operating Center Frequency: The frequency at which the resonator is designed to operate.

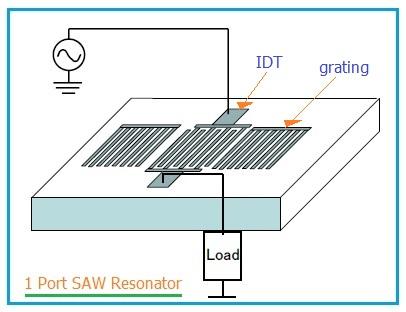

• Configuration (1 port or 2 port): The number of ports the resonator has.
• Package Type: The physical packaging of the resonator (e.g., QCC12B, TO39, SIP4M, DCC6).
• Loaded Q: A measure of the resonator’s quality factor when loaded in a circuit.
• Untuned Insertion Loss (dB): The signal loss through the resonator when it is not tuned.
• Material Used: The piezoelectric material used in the resonator’s construction (e.g., Quartz, 36YX Quartz, 37YX Quartz).

SAW Resonator Manufacturers

The following table lists some of the popular manufacturers and vendors of RF SAW resonators:

RF SAW Resonator Manufacturers	Description
TAI-SAW TECHNOLOGY CO., LTD.	Offers SAW resonators for various center frequencies, including 245.76 MHz, 300 MHz, 302 MHz, 390 MHz, 418 MHz, 1008 MHz, 1279.6 MHz, etc. E-mail: claireliu@mail.taisaw.com
Golledge Electronics	GSRS series with a frequency range of 100 MHz to 1.1 GHz. E-mail: sales@golledge.com
Amplitronix LLC	Website: www.amplitronix.com/ E-mail: sales@amplitronix.com
Vanlong Technology Co., Ltd.	Offers SAW resonators from 50 MHz to 1 GHz frequency ranges, available in one-port and two-port configurations with thru-hole packages. Website: www.vanlong.com E-mail: sales@vanlong.com
Murata Manufacturing	1-port and 2-port resonators for the 300 MHz to 1 GHz frequency range. Website: https://wireless.murata.com/ E-mail: taro_murata@murata.com
Microsaw	Website: https://www.microsaw.fi E-mail: sales@microsaw.fi
RichardsonRFPD (Arrow Electronics, Inc.)	Website: https://www.richardsonrfpd.com E-mail: customerrelations@richardsonrfpd.com
Token Electronics, Taiwan	Offers 1-port and 2-port SAW resonators from 200 MHz to 1 GHz range. E-mail: rfq@token.com.tw
Abracon corporation, California, USA	1-port 303.825 MHz SAW resonator (SMD type). Website: www.abracon.com E-mail: abinfo@abracon.com
SHENZHEN CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD., CHINA	Website: https://www.q-crystal.com E-mail: sjk@q-crystal.com

Summary

A SAW resonator provides stable frequency control for RF and wireless communication systems. Manufacturers offer SAW resonators for oscillators, IoT devices, automotive electronics, and communication equipment.
