What is 8B/10B Encoding : Advantages and Disadvantages

8B/10B encoding is a line coding technique that converts 8-bit data into 10-bit symbols to maintain DC balance and improve synchronization. Advantages include reliable clock recovery and error detection support, while disadvantages include 25 % bandwidth overhead and increased encoding complexity. It is widely used in high speed communication systems.

8B/10B Encoding Procedure

8B/10B is a block coding technique that, similar to 4B/5B encoding, uses redundancy to ensure synchronization and improve performance. It also offers inherent error detection capabilities. The name “8B/10B” signifies that the encoding process takes 8-bit blocks as input and produces 10-bit blocks as output.

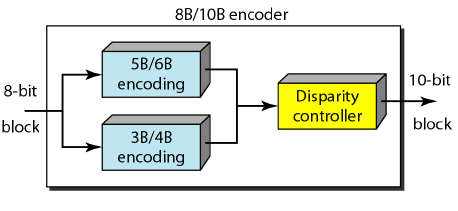

The 8B/10B block coding scheme is a combination of 5B/6B and 3B/4B encoding, as illustrated below:

The most significant bits (MSBs) of the 8-bit block are fed into a 5B/6B encoder, while the 3 least significant bits (LSBs) are fed into a 3B/4B encoder module. The coding has 2¹⁰ - 2⁸ redundant groups.

Advantages of 8B/10B Encoding

1. Disparity Control: It employs a disparity controller to keep track of excess 0s over 1s (or vice versa). This helps to prevent long runs of consecutive 0s or 1s, which can cause synchronization issues.
2. Error Detection: The redundant groups can be used for disparity checking and error detection, improving the reliability of the transmitted data.
3. Superior to 4B/5B: It offers better performance than 4B/5B coding due to its built-in error checking capability and improved synchronization.

Disadvantages of 8B/10B Encoding

1. Overhead: The redundant data introduces overhead, increasing the overall bandwidth requirements.

Summary

8B/10B encoding improves synchronization and signal integrity in digital communication systems. Advantages include DC balance and clock recovery, while disadvantages include additional bandwidth requirements.
