What is TTP Protocol: Key Benefits, Features & Limitations

The Time Triggered Protocol (TTP) is a deterministic communication protocol designed for safety critical distributed embedded systems requiring predictable real time data exchange. Its advantages include deterministic communication, high reliability, and fault tolerance, whereas its disadvantages include implementation complexity, limited flexibility, and higher development costs for specialized applications.

What is TTP Protocol?

TTP (Time Triggered Protocol) enables deterministic and fault tolerant communication for safety critical vehicle systems. In the high stakes world of safety critical automotive systems, where a millisecond can make all the difference, the Time Triggered Protocol (TTP) stands out as a communication standard built on a foundation of predictability and reliability. Unlike event triggered protocols like CAN, which react to events as they occur, TTP orchestrates communication based on a pre-defined, globally synchronized schedule.

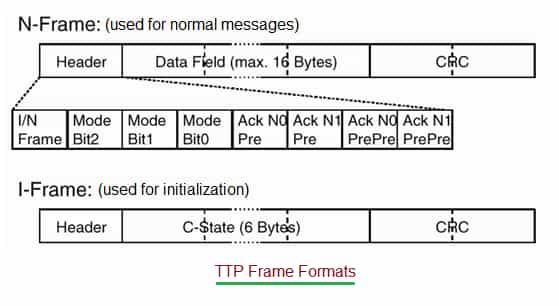

TTP enables time triggered communication through strict Time Division Multiple Access (TDMA) scheme.

Benefits or Advantages of TTP

1. Determinism and predictability : It guarantees when messages will be sent and received.
2. TTP was designed with fault tolerance as primary goal. It supports replicated channels and nodes to handle failures. Protocol includes mechanism known as “bus guardian” which can prevent a faulty node from disrupting entire network.
3. TTP systems are temporally composable. This means behavior of individual subsystems can be analyzed and verified independently.
4. It simplifies error detection as message arrival times are known in advance.
5. By eliminating the need for bus arbitration, TTP can achieve higher effective data rates compared to older protocols like CAN. The protocol’s message overhead is also minimal.
6. TTP provides a membership service that keeps all correct nodes informed about the status and consistency of data transmission from other nodes.

Limitations or Disadvantages of TTP

1. The static nature of the TDMA schedule makes TTP less flexible than event-triggered protocols.
2. While efficient for periodic data, the pre-allocated slots can be wasteful if a node only needs to transmit data sporadically.
3. The upfront design and scheduling of a time triggered system can be complex.
4. The specialized hardware controllers required for TTP could be more expensive than those for more widespread protocols like CAN.

Summary

TTP provides dependable real time communication for automotive, aerospace, industrial automation, and safety critical control systems where predictable timing is essential. Its protocol advantages improve reliability, synchronization, and fault management, although implementation complexity, scalability considerations, and specialized hardware requirements influence deployment decisions.
