What are Organic Solar Cells : Advantages and Disadvantages

Organic solar cells are photovoltaic devices that use organic semiconductor materials to convert sunlight into electrical energy. They are lightweight, flexible, and suitable for wearable electronics, portable devices, and building-integrated photovoltaics. However, compared to silicon solar cells, they generally offer lower efficiency and shorter operational lifetime.

Introduction to Solar Cells

A solar cell is a device that converts solar energy into electrical energy. It generates electricity from the radiant energy of sunlight through the photovoltaic effect. To generate the desired solar power, multiple solar cells are connected. This configuration is known as PV modules or solar panels.

There are three main types of solar cells:

• Silicon Solar Cells (First Generation)
• Thin Film Solar Cells (Second Generation)
• Organic Solar Cells (Third Generation)

Structure of Organic Solar Cell and its working principle

Organic Solar Cells consist of thin layers of organic semiconducting materials, hence the name.

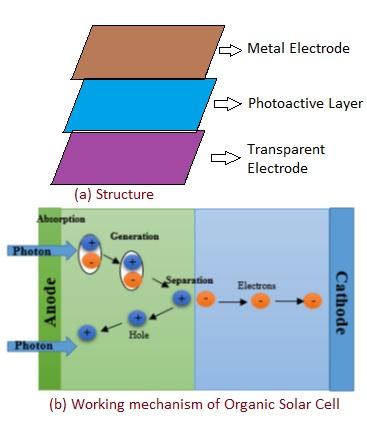

• The basic structure, as shown in Figure 1(a), consists of a photoactive layer sandwiched between two thin film electrodes, one of which is semi-transparent. The semi-transparent electrode allows sunlight to enter the device.

• The photoactive layer is composed of two different types of semiconductors (e.g., donor, acceptor) which form a heterojunction, similar to the p-n junction of an inorganic solar cell.

• Sunlight consists of radiant particles known as photons.

Working principle of Organic Solar Cell:

As shown in Figure 1(b), the working principle can be summarized as follows:

• Photons from sunlight are absorbed into the photoactive donor material.

• This process generates excitons, which are tightly bound electron-hole pairs.

• The excitons move towards the Donor-Acceptor interface, where they separate into charge carriers (electrons and holes).

• After separation, holes move toward the donor material (anode), and electrons move toward the acceptor material (cathode).

• The collection of charges at the respective electrodes results in the generation of electricity due to the steady flow of charges into the external circuit.

Benefits or Advantages of Organic Solar Cells

1. Lightweight: Organic solar cells are significantly lighter than traditional silicon-based cells.

2. Semi-transparent: Their semi-transparent nature allows for various applications, such as integration into windows.

3. Environmentally Friendly: They are generally considered more environmentally friendly in terms of manufacturing.

4. Thinness and Cost Savings: Organic solar cells are 1000 times thinner compared to silicon solar cells, leading to substantial material savings and lower production costs.

5. Flexibility: The use of PV modules makes them flexible and adaptable to different surfaces.

6. Short Energy Payback Time: They offer a shorter energy payback time, meaning they generate the energy used in their production relatively quickly.

7. Easy Integration: They are easier to integrate into various applications and products.

Drawbacks or Disadvantages of Organic Solar Cells

1. Lower Efficiency: The efficiency of organic solar cells (around 5%) is significantly lower compared to silicon solar cells (around 15%). They are stable in the dark but degrade in light conditions. The efficiency is limited by poor generation and extraction of electrical charges.

2. Shorter Lifespan: Their lifespan is shorter compared to inorganic solar cells. Organic materials degrade rapidly in ambient exposure. Moisture and air, along with sunlight, further degrade their performance over time.

Summary

Organic solar cells generate electricity from sunlight using organic semiconductor materials instead of silicon. They offer flexibility, lightweight construction, and low-cost manufacturing for emerging photovoltaic applications. However, lower conversion efficiency, reduced durability, and shorter service life remain key disadvantages.
