CoAP Protocol: Advantages and Disadvantages

Introduction: The Constrained Application Protocol (CoAP) is a specialized web transfer protocol designed for use in resource constrained environments such as IoT (Internet of Things) devices and networks. Developed by the IETF, CoAP enables lightweight communication between devices with limited processing power, memory and bandwidth. It follows a RESTful architecture similar to HTTP but operates over UDP to reduce overhead and improve efficiency. CoAP is particularly useful in scenarios where low power consumption, simplicity and efficient communication are critical.

Key points

  • It operates on a client/server model, utilizing methods like GET, PUT, POST, and DELETE.
  • CoAP supports both request/response and publish/subscribe communication patterns.
  • It can be bound to UDP, TCP, and SMS.
  • Defined in RFC 7252, CoAP is a highly efficient RESTful protocol.

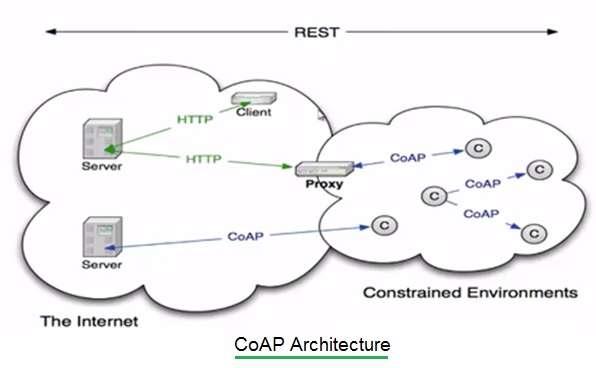

CoAP Architecture

  • As illustrated in the figure above, CoAP integrates both HTTP and CoAP clients.
  • A proxy device bridges the gap between the constrained network and the standard HTTP-based internet.
  • CoAP uses both asynchronous and synchronous message types.
  • The header size is only 4 bytes.
  • For more detailed information, refer to articles on CoAP Protocol architecture, differences between CoAP vs. HTTP, and CoAP vs. MQTT.

Advantages of CoAP Protocol

Following are some of the key benefits of CoAP protocol.

  1. Simplicity and Low Overhead: CoAP is a simple protocol with minimal overhead due to its operation over UDP.
  2. Power Efficiency: It allows for short wake-up times and long sleep states, contributing to extended battery life for IoT and M2M devices.
  3. Secure Communication: CoAP utilizes IPSEC or DTLS for secure communication.
  4. Flexible Communication: Synchronous communication is not mandatory in CoAP.
  5. Low Latency: It boasts lower latency compared to HTTP.
  6. Low Power Consumption: CoAP consumes less power than HTTP.
  7. Reliable Communication: Through the use of ACK messages, CoAP achieves reliability similar to HTTP while avoiding unnecessary retransmissions.
  8. Ideal for Home Networks: CoAP is a suitable protocol choice for home communication networks, finding applications in information appliances, communication equipment, and control equipment in smart homes.

Disadvantages of CoAP Protocol

Following are some of the drawbacks of CoAP protocol.

  1. Unreliability (UDP-Based): Due to its reliance on UDP, CoAP is inherently unreliable. Messages may arrive out of order or get lost during transmission. To mitigate this, CoAP implements a stop-and-wait mechanism with exponential backoff retransmission and duplicate detection.
  2. Increased Processing Time: Acknowledging each received message increases processing time. Furthermore, CoAP does not verify if the received message has been decoded correctly.
  3. Security Overhead: While it can be secured using DTLS, CoAP is inherently unencrypted (like MQTT). Implementing DTLS adds implementation overhead.
  4. NAT Traversal Issues: CoAP can face communication challenges for devices behind Network Address Translation (NAT).

Conclusion: In summary, the Constrained Application Protocol (CoAP) is a lightweight and efficient protocol tailored for constrained devices and networks, making it ideal for IoT applications. Its advantages include low overhead, RESTful architecture and suitability for resource limited environments. However, it also has disadvantages such as limited support for large data transfers, weaker security compared to more robust protocols and reliance on UDP, which may not guarantee reliability. Overall, CoAP is well suited for specific use cases where simplicity and efficiency outweigh the need for complex features.
