This page provides LabVIEW source code for a VI (Virtual Instrument) that converts a hex vector to a binary vector. You can download the LabVIEW VI source code using the link provided below.
Hex to Binary LabVIEW VI Block Diagram

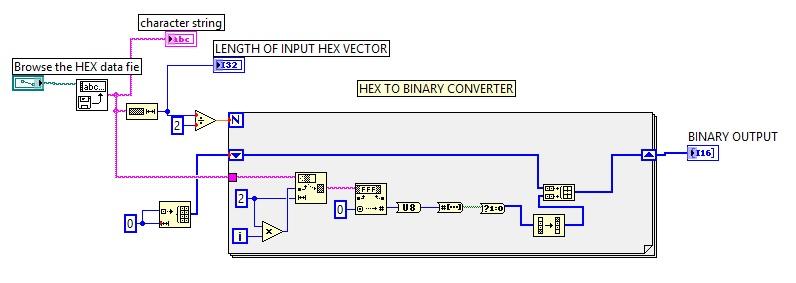

Figure 1 shows the block diagram of the hex to binary LabVIEW VI.
Figure 1: Hex to Binary LabVIEW VI Block Diagram
Hex to Binary LabVIEW VI Front Panel

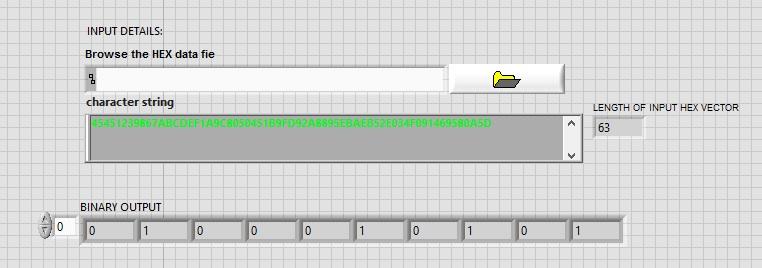

Figure 2 illustrates the front panel of the hex to binary LabVIEW VI.
Figure 2: Hex to Binary LabVIEW VI Front Panel
Download Hex to Binary Converter LabVIEW Code
Download hex to binary labview vi source code file
