BCD counter HDL Verilog Code
This page of verilog sourcecode covers HDL code for BCD counter and Gray counter using verilog.

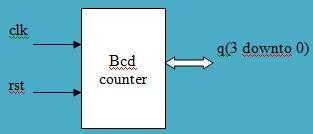

BCD Counter Symbol
BCD counter Truth table
| Rst | Clk | Q |
|---|---|---|
| 1 | X | 0000 |
| 0 | 1 | 0001 |
| 0 | 1 | 0010 |
| 0 | 1 | 0011 |
| 0 | 1 | 0100 |
| 0 | 1 | 0101 |
| 0 | 1 | 0110 |
| 0 | 1 | 0111 |
| 0 | 1 | 1000 |
| 0 | 1 | 1001 |
BCD counter Verilog code
module bcd(clr,clk,dir, tc, q);
input clr,clk,dir;
output reg tc;
output reg[3:0] q;
always@(posedge clk,posedge clr)
begin
if(clr==1)
q=4'd0;
else
begin
if (dir==1)
q=q+1;
else if(dir==0)
q=q-1;
if(dir==1 & q==4'd10)
begin
q=4'd0;tc=1'b1;
end
else if(dir==0 & q==4'd15)
begin
q=1'd9;tc=1'b1;
end
else tc=1'b0;
end
end
end module
BCD counter Simulation result

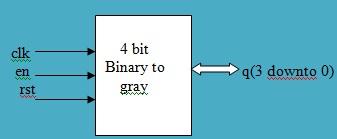

Gray Counter Symbol
Gray counter Truth table
| Rst | Clk | En | B3 | B2 | B1 | B0 | G3 | G2 | G1 | G0 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | X | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 |
| 0 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 1 |
| 0 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 1 | 1 | 1 |
| 0 | 1 | 1 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | 1 |
| 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 | 0 | 0 | 0 | 1 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 | 0 | 0 | 1 | 1 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 1 | 1 |
| 0 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 0 |
| 0 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 0 | 1 | 1 |
| 0 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 1 |
| 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 |
Gray counter Verilog code
module gray(clr,clk, q);
input clr,clk;
output reg[2:0] q;
reg temp=3'd0;
always@(posedge clk,posedge clr)
begin
if(clr==0)
begin
case(temp)
3'd0:q=3'd1;
3'd1:q=3'd3;
3'd2:q=3'd6;
3'd3:q=3'd2;
3'd6:q=3'd7;
3'd7:q=3'd5;
3'd5:q=3'd4;
3'd4:q=3'd0;
endcase
end
else q=3'd0;
end
end module
