Satellite Angular Velocity Calculator & Formula

The average angular velocity of a satellite is the rate at which it sweeps out an angle in its orbit around the Earth. It can be calculated using the satellite’s orbital radius or its orbital period, following the principles of orbital mechanics. The angular velocity is crucial for understanding the satellite’s motion and its position in orbit at any given time.

What is Satellite Angular Velocity

Following are the two formulas to calculate satellite average angular velocity based on orbital mechanics:

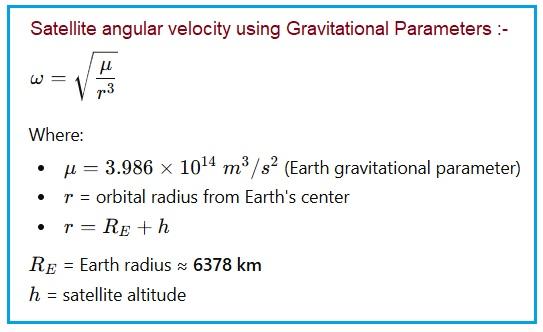

1. Using orbital radius (r) : ω = sqrt(μ / r^3)

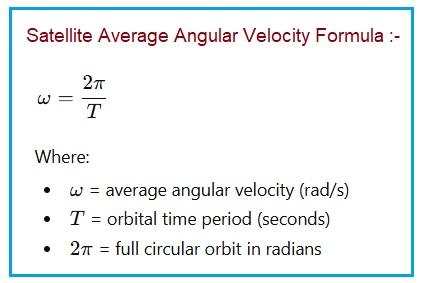

2. Using orbital period (T) : ω = 2π / T Where :

• ω = Average angular velocity (radians/second)
• μ = Standard gravitational parameter for Earth (m^3 s^-2) = G \

• M

• r = Orbital radius (meters)
• T = Orbital period (seconds)
• G = Gravitational constant (6.67430 x 10^-11 m^3 kg^-1 s^-2)
• M = Mass of Earth (5.972 x 10^24 kg)

The average angular velocity can also be converted from radians/second to degrees/second by multiplying by (180/π).

Satellite Angular Velocity Calculator

** Calculation Example:**

• Inputs : Satellite Altitude (h) = 500 km
• Outputs :
  • Output #1: Orbital radius (r) = 6878 km
  • Output #2: Orbital period (T) = 5676.80 seconds
  • Output #3: Average angular velocity (ω) = 0.0011 radians/second
  • Output #4: Average angular velocity (ω) = 0.0634 degrees/second
  • Output #5: Average angular velocity using orbital period (ω) = 0.0011 radians/second

Note : Both Output #3 and Output #5 should give the same angular velocity value in rad/second. This verification confirms the consistency of the calculations using both orbital radius and orbital period methods, as they are based on the same underlying physics of satellite motion.

Conclusion

The average angular velocity of a satellite is a fundamental parameter that describes its motion in orbit around the Earth. By calculating the angular velocity using either the orbital radius or the orbital period, engineers and scientists can predict the satellite’s position and velocity at any given time, which is essential for satellite communication, navigation and space exploration missions. Understanding the angular velocity helps in optimizing satellite trajectories and ensuring successful mission outcomes.
