# Reflection coefficient Formula

In RF (Radio Frequency) design, the reflection coefficient is a key parameter used to describe the behavior of electromagnetic waves at the interface between two transmission lines or components. It quantifies how much of an incident electromagnetic wave is reflected back from the interface, usually due to impedance mismatch, and how much is transmitted forward. Let us understand Reflection coefficient formula and its calculator.

The reflection coefficient is typically denoted by the symbol "Γ" (gamma) and is a complex number.
It is defined as the ratio of the reflected voltage wave (Vr) to the incident voltage wave (Vi) at the interface:

➨ Γ = (Vr / Vi)

This reflection coefficient can also be expressed in terms of the load impedance (Z_L) and the source impedance (Z_S) connected to the interface.

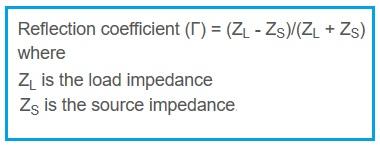

If Z_S represents the source impedance and Z_L represents the load impedance, then the reflection coefficient can be calculated using the following formula.

➨ Γ = (Z_L - Z_S) / (Z_L + Z_S)
Where,

Γ (Gamma) is the reflection coefficient.

Z_L (Load Impedance) is the impedance of the load connected to the interface.

Z_S (Source Impedance) is the impedance of the source connected to the interface.

The reflection coefficient is a complex number because it contains both magnitude and phase information.
It is often represented in polar form, where the magnitude (|Γ|) represents the amount of reflection
and the phase angle (φ) represents the phase shift of the reflected wave relative to the incident wave.

➨ |Γ| = |(Z_L - Z_S) / (Z_L + Z_S)|

➨ φ = ∠ (Γ)

Let us assume that reflection coefficient (Γ) and the incident voltage (Vi) are provided as input and
you have been asked to calculate reflected voltage (Vr). For this, one can use the following formula.

➨ Vr = Γ * Vi

A reflection coefficient calculator and its associated formula are invaluable tools for engineers in RF (Radio Frequency) design and development because they help to assess impedance matching, to design systems with minimal signal loss and to maintain signal integrity. It also helps to evaluate RF components such as antennas, amplifiers, filters etc. by analyzing their reflection coefficients.

## RF Reflection coefficient calculator

RF engineers use these calculators alongside instruments such as vector network analyzers (VNAs) to measure and validate the performance of RF components and systems more accurately.

RF reflection coefficient calculators allow users to input the impedance values of the source and load and with a click of a button, they provide the reflection coefficient value, often displayed both as a magnitude and a phase angle.

EXAMPLE Reflection coefficient calculator :

INPUTS : ZL = 50 Ohm, ZS= 25, VI = 3

OUTPUTS : Reflection coefficient = 0.333, Reflected voltage = 1

**Conclusion** :
In essence, the reflection coefficient formula and its calculator empower RF engineers to analyze, optimize, and troubleshoot RF systems, ensuring efficient power transfer, signal integrity, and overall system reliability. This capability is essential in various applications,
including wireless communications, radar, satellite communications, and other RF-based technologies.
