This page provides an RF Balun calculator and explains the formula used. This specific calculator is for RF LC balun types.
EXAMPLE of RF Balun Calculator:
- INPUTS:
- Frequency (F) = 1000 MHz
- Z1 = 50 Ohm
- Z2 = 35.4 Ohm
- OUTPUT:
- L = 6.696 nH
- C = 3.783 pF
RF LC Balun Calculator Formula or Equation

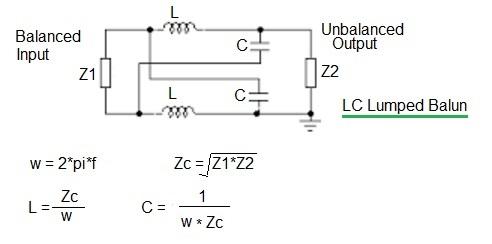

The figure below illustrates a typical LC bridge configuration, often referred to as a lattice-type balun.
This design uses two inductors and two capacitors. These components create approximately +/- 90 degrees of phase shift between the input and output signals.
The following equation or formula is used in the RF LC Balun Calculator:
