Understanding Antenna Far-Field Distance

In the world of antennas, the far-field distance (also called the far-field region or Fraunhofer region) is a critical concept. It’s essentially the distance from the antenna where the electromagnetic radiation pattern settles down and becomes predictable. Think of it as the point where the radiated waves behave nicely, resembling a spherical wavefront, a plane wave, or a clearly defined beam.

This region is important because the electromagnetic fields produced by the antenna start exhibiting specific, predictable characteristics. Let’s dive into how to calculate this distance and understand its significance.

Factors Affecting Far-Field Distance

The far-field distance isn’t a fixed number; it depends on a few key things:

• Antenna Size: Larger antennas generally have larger far-field distances.
• Operating Frequency: Higher frequencies tend to result in shorter far-field distances.
• Radiation Pattern: The shape and direction of the antenna’s radiation also play a role.

Why is Understanding the Far-Field Region Important?

Knowing the far-field region is essential for antenna design and deployment. It helps engineers:

• Determine Coverage Area: Understand how far the antenna’s signal will effectively reach.
• Calculate Gain: Measure the antenna’s ability to focus power in a specific direction.
• Analyze Radiation Pattern: Predict the shape and strength of the radiated signal.

All of this is crucial for ensuring effective communication and reliable signal reception.

Far-Field Distance Calculator

The calculator takes input as largest of diameter of the antennas from Equipment Under Test antenna and test antenna and operating frequency and provide far field range as output.

EXAMPLE of far field distance calculation:

• INPUTS : d = 2.4 meters, Frequency = 6000 MHz
• OUTPUT: Far Field distance >= 230.4 meters

Far Field Formula

There are different regions around an antenna:

• Reactive Near Field (up to λ)
• Radiating Near Field (up to 3*λ)
• Fresnel Near Field (up to 2*D²/λ)
• Radiating Far Field (>=2*D²/λ)

The far-field distance can be calculated using the antenna’s diameter (‘D’) and operating frequency (‘f’). The formula is:

R >= 2 * D^2 / λ

Where:

• R is the far-field distance
• D is the largest dimension of the antenna (diameter)
• λ is the wavelength of the signal (calculated as the speed of light divided by the frequency)

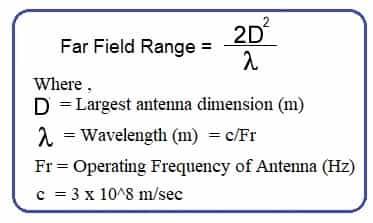

Here’s an image illustrating the formula:

Conclusion

In conclusion, understanding and utilizing the far-field formula, along with its associated far-field distance calculator, is essential in various fields of science and engineering. These tools are particularly valuable in optics, electromagnetic wave (EM) propagation, and especially in antenna design, helping engineers optimize performance and ensure reliable communication systems.
