UDS Frame Analysis & UDS Diagnostic Software Tool

automotive uds frame protocol analyzer tool

Introduction : The UDS (Unified Diagnostic Services) protocol is an application layer standard (ISO 14229) used for vehicle diagnostics over various underlying buses.

UDS Frame Structure

The primary fields within a UDS message payload are the Service Identifier (SID) and optional Sub-function and Data parameters These fields define requests and responses in structured diagnostic frames.

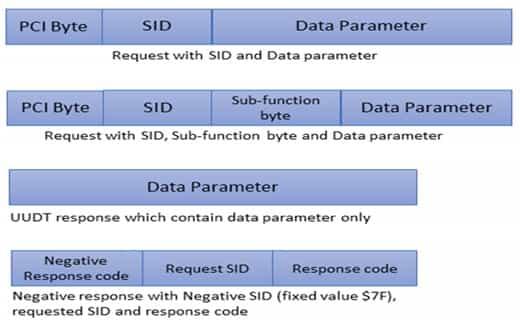

UDS protocol Frame

The core UDS message, which is the data carried within the transport layer frames, has the following general fields.

Field	Size	Purpose/Description
Service Identifier (SID)	1 byte	Mandatory field that identifies the specific diagnostic service being requested (e.g., 0x22 for Read Data by Identifier, 0x10 for Diagnostic Session Control).
Sub-Function	1 byte	An optional field used to specify a sub-service within a main SID (e.g., a specific diagnostic session mode within the Diagnostic Session Control service).
Data Parameters	Variable (in bytes)	Optional field(s) containing specific parameters for the service, such as Data Identifiers (DIDs), memory addresses, or data records.

UDS Protocol Data logger tool

Manufacturers	Product/features
Vector Informatik	CANoe/CANalyzer : Both tools offer extensive support for UDS (ISO 14229), including a built-in UDS diagnostic feature set.
Intrepid Control Systems	Vehicle Spy 3 : UDS and ISO 14229 Diagnostics
Accurate Technologies Inc. (ATI)	VISION Calibration and Data Acquisition Software : VISION provides integrated support for UDS and other diagnostic protocols, allowing engineers to perform diagnostics, calibration, and data acquisition from a single application.
PEAK-System Technik	PCAN-Explorer 6 with the Diagnostics Add-in : The core PCAN-Explorer software provides powerful CAN bus analysis, while the optional Diagnostics Add-in specifically enables communication with ECUs using the UDS protocol.
SavvyCAN - Open-Source Analyzer	SavvyCAN includes built-in tools specifically for UDS, allowing users to scan for ECUs and perform common diagnostic requests like reading DTCs (Diagnostic Trouble Codes) and DIDs (Data Identifiers).

Summary: UDS diagnostic software provides frame level analysis and logging capability, empowering engineers with visibility into service request/response cycles, parameter encoding and fault handling. This analysis is crucial for verifying ECU diagnostics and vehicle service functionality.
