RS485 Modbus Interface : Advantages and disadvantages

Introduction : In industrial automation and control systems, reliable communication between devices is critical. RS-485 is one of the most widely used physical layer standards, known for its robustness, long distance capability, and multi drop networking support. Combined with the Modbus protocol, it forms the backbone of countless monitoring and control applications, from energy meters and sensors to PLCs and SCADA systems. This page will introduce the role of RS485 Modbus converters, explain how they work and explore their advantages and disadvantages.

RS485

It is a widely used serial communication standard that defines the electrical characteristics of drivers and receivers for balanced digital multipoint systems. RS-485 allows multiple devices to communicate over long distances (up to 1200 meters) using twisted-pair wiring, making it highly reliable in electrically noisy environments. RS-485 supports half duplex communication and multi-drop networks with up to 32 or more devices, making it a preferred choice for industrial automation, building management and instrumentation.

• RS-485 acts as physical layer (i.e. the “wires and signals”).

Modbus

It is a communication protocol developed in 1979 for industrial applications, designed to enable master slave communication between controllers, sensors and field devices. It is simple, open and widely adopted in process control and automation systems. Modbus defines the structure for how devices exchange data, typically in the form of registers and coils. It can run over different physical layers such as RS-232, RS-485 (Modbus RTU), or Ethernet (Modbus TCP). Its simplicity, interoperability and robustness have made it one of the most enduring industrial protocols.

• Modbus RTU performs as protocol layer (i.e. the “rules for talking”).

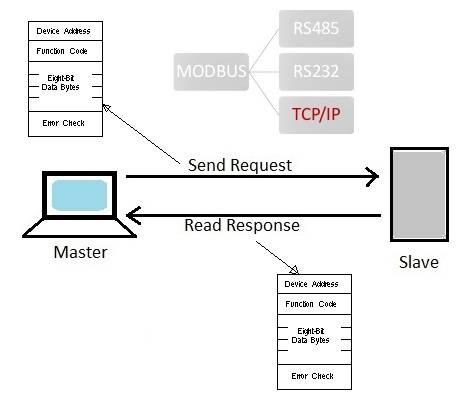

The figure depicts use of modbus protocol (send, response) between master and slave. As shown it can be used over various interfaces such as RS232, RS485, Ethernet etc.

Advantages of RS-485 Modbus Interface

Following are some of the benefits of RS485 Modbus interface.

1. It supports distances up to 1200 neters at 9600 baud which is longer than RS232.
2. It supports up to 32 devices or more with repeaters due to its multi-drop capability.
3. Modbus RTU is light weight and efficient due to its binary format and small packets.
4. It is lower in cost.

Disadvantages of RS-485 to Modbus Converter

Following are some of the limitations of RS485 to Modbus interface converter.

1. It is vulnerable to spoofing or data injection if network is exposed.
2. It supports simple error handling (i.e. CRC only), no encryption or advanced diagnostics.
3. Speed is lower than ethernet based protocols. Usually it supports 9.6 to 115.2 Kbps and some up to 10 Mbps.
4. It is susceptible to high EMI environments without shielding or grounding.
5. It requires proper termination resistors, biasing and careful topology.

Conclusion:

An RS485 Modbus Interface Converter serves as the essential bridge between Modbus RTU devices and other communication systems, such as USB, Ethernet (Modbus TCP) or wireless networks (LoRaWAN, Wi-Fi, GSM/4G). By converting signals and protocols, these converters make it possible to integrate legacy Modbus devices into modern IoT platforms and centralized monitoring solutions without replacing existing infrastructure.
