QM 333 Chart: Environmental Cycle for Climatic Tests
By RF Wireless Expert Team
Advertisement
This page describes the QM 333 Chart, an Environmental Cycle Chart used for climatic tests. This chart is useful for testing RF, Wireless, and electronic systems.

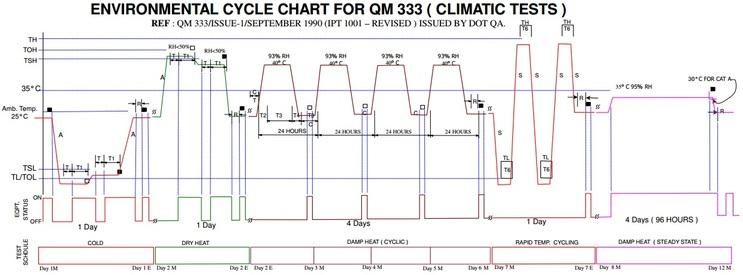

Understanding the QM-333 Chart
Following designations are useful to understand the QM-333 chart.
| legend | Description |
|---|---|
| TSL | LOWEST TEMPERATURE AT WHITCH SPECIFICATIONS ARE GUARANTED |
| TSH | HIGHEST TEMPERATURE AT WHITCH SPECIFICATIONS ARE GUARANTED |
| TOL | LOWEST TEMPERATURE AT WHITCH EQUIPMENT IS TO REMAIN OPERATIONAL |
| TOH | HIGHEST TEMPERATURE AT WHITCH EQUIPMENT IS TO REMAIN OPERATIONAL |
| TL | MINIMUM STORAGE TEMPERATURE |
| TH | MAXIMUM STORAGE TEMPERATURE |
| R | RECOVERY 1 TO 2 HOURS FOR DAMP HEAT TESTS < 1 Hr. FOR OTHER TESTS |
| S | RATE OF RISE OR FALL OF TEMPERATURE [(TH-TL)/15]o C/MIN. OR 5 ± 1o C |
| C | 25 ± 3o 95% RH |
| A | LESS THAN OR EQUAL TO 1o C/MIN. |
AMBIENT: 15 to 35o C, 45 to 75 RH
Tolerance:-
Temperature: ±2o C
Humidity: ±2% RH
| Legend | Description |
|---|---|
| T | 1 Hour |
| T1 | 2 Hours |
| T2 | 2-3 Hours |
| T3 | 6-8 Hours |
| T4 | 3-8 Hours |
| T5 | 3-6 Hours |
| T6 | 3 Hours |
| Equipment Category | Location | TOL | TSL | TOH | TSH | TL | TH |
|---|---|---|---|---|---|---|---|
| A | AC ROOMS | 0 | 20 | 35 | 30 | -5 | 60 |
| B | NON AC | -5 | 0 | 55 | 50 | -5 | 60 |
| C | BURIED | 5 | 15 | 40 | 35 | -5 | 60 |
| D | POLE MOUNTED | -10(0) | 55 | 60 | -15(-5) | -15(-5) | 60 |
