LTE Routing Area Update (RAU) Procedure
By RF Wireless Expert Team
Advertisement
This document describes the Routing Area Update (RAU) procedure in an LTE system. RAU stands for Routing Area Update within the LTE network. We’ll cover both scenarios: RAU without a Serving Gateway (S-GW) change and RAU with an S-GW change.
RAU Procedure Without S-GW Change
Figure 1: RAU Procedure without S-GW change

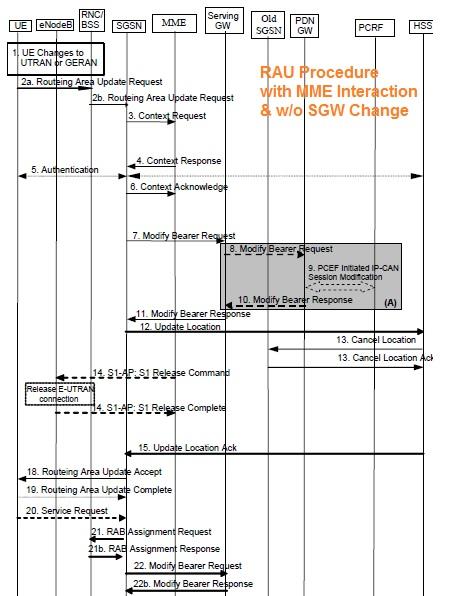

Figure 1 illustrates the message flow between the different entities within the E-UTRAN (Evolved Universal Terrestrial Radio Access Network) during a Routing Area Update procedure where the Serving Gateway remains the same.
RAU Procedure With S-GW Change
Figure 2: RAU Procedure with S-GW change

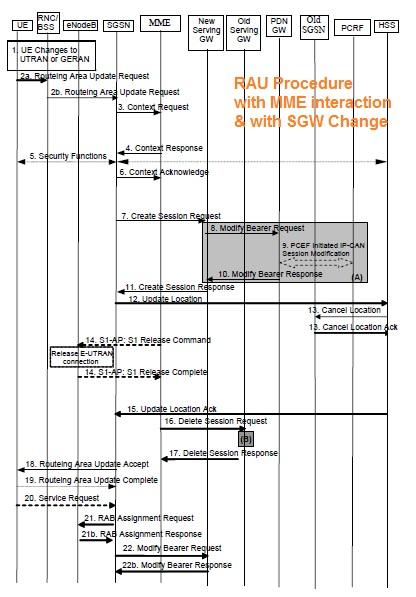

Figure 2 depicts the message flow between E-UTRAN entities during an RAU procedure when the Serving Gateway is changed.
REFERENCE: 3GPP TS 23.401 version 11.3.0 Release 11
