8-to-3 Priority Encoder VHDL Code

This article presents VHDL code for an 8-to-3 encoder with priority. We’ll cover the block diagram, truth table, and the VHDL code itself.

Block Diagram

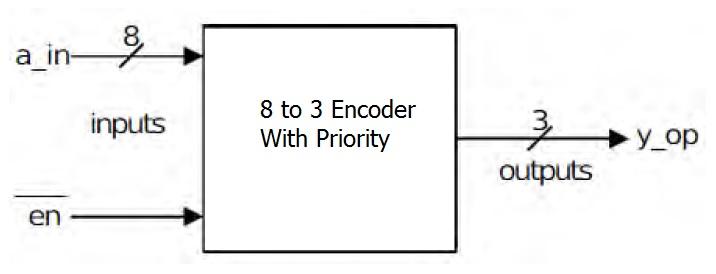

Here’s the block diagram of the 8-to-3 encoder with priority:

Truth Table

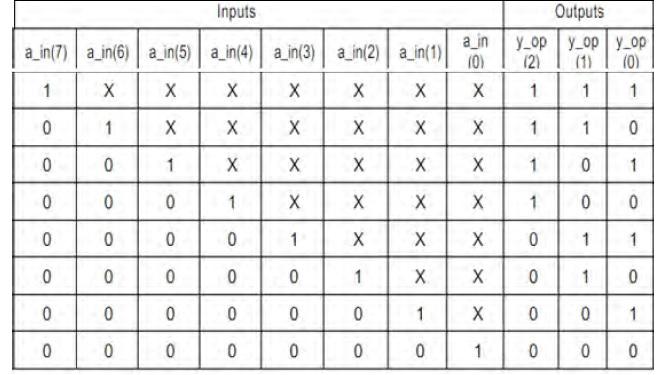

The truth table below defines the behavior of the priority encoder:

8 to 3 Encoder with Priority VHDL Code

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

entity prio_enco is
    port (
        en: in std_logic;
        a_in: in std_logic_vector (7 downto 0);
        y_op: out std_logic_vector (2 downto 0)
    );
end ;

architecture dataflow of prio_enco is
begin
    y_op <= "111" when a_in(7)='1' else
            "110" when a_in(6)='1' else
            "101" when a_in(5)='1' else
            "100" when a_in(4)='1' else
            "011" when a_in(3)='1' else
            "010" when a_in(2)='1' else
            "001" when a_in(1)='1' else
            "000" ;
end;
