3D GPS Distance Calculator (ECEF) & Formula
By RF Wireless Expert Team
Advertisement
The 3D Geometric Distance GPS Calculator computes the straight-line distance between a GPS satellite and the receiver in Earth-Centered, Earth-Fixed (ECEF) coordinates. This geometric range is fundamental for positioning since it represents the true spatial separation before clock and atmospheric corrections.
GPS Geometric Distance Calculator
INPUTS:
- Receiver position (ECEF) : (1910, 4800, 3990) Km
- Satellite position (ECEF) : (15600 , 7540 , 20140) km
OUTPUTS:
- Geometric Range in meters = 24564797.98
- Geometric Range in Km =24564.79

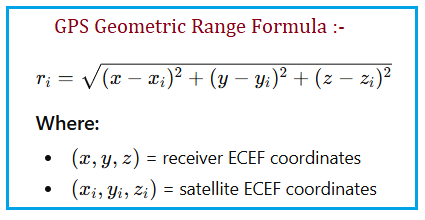

GPS Geometric Distance Formula
Benefits/Applications
- Converts satellite and receiver positions in ECEF to an accurate 3D distance.
- Essential in GNSS positioning, satellite orbit analysis, and measurement modeling.
- Supports advanced applications like 3D mapping and navigation system calibration.
Summary: This calculator provides the geometric backbone for any GPS solution, enabling deeper analysis of measurement models and accuracy impacts
