GPS NMEA data format is a standard communication protocol used by GPS receivers to transmit positioning and navigation information. Key NMEA sentences include GPGGA for GPS fix data, GPGLL for geographic coordinates, GPVTG for course and speed and GPRMC for essential navigation details such as time, date, position and velocity. Let us explore GPS NMEA Sentences with example patterns covering GPGGA, GPGLL, GPVTG, GPRMC etc.

Introduction

A GPS receiver module requires only DC power supply for its operation. It will start outputting data as soon as it has identified GPS satellites within its range.
GPS module uses plain ASCII protocol known as NMEA developed by National Marine Electronics Association. Hence they are also known as NMEA sentences.
Each block of data is referred to as a “sentence”. Each of these sentences are parsed independently.
The default transmission rate of these gps sentences is 4800 bps. Certain GPS modules use a serial rate of 9600 bps also. It uses 8 bits for ASCII character, no parity and 1 stop bit.
Sentence begins with two letters to represent GPS device. For example, “GP” represents a GPS device and so on.
The remainder of the sentence consists of letters/numerals in plain ASCII. A sentence cannot have more than 80 characters.
A sentence carries latitude, longitude, altitude and time of readings obtained from satellites.
Some sentence data structures are proprietary, developed by device manufacturers, and begin with the letter “P”.

Following is the generic table which mentions functional description of NMEA output messages.

GPS NMEA Sentences

NMEA Sentence	Meaning
GPGGA	Global positioning system fix data (time, position, fix type data)
GPGLL	Geographic position, latitude, longitude
GPVTG	Course and speed information relative to the ground
GPRMC	Time, date, position, course and speed data
GPGSA	GPS receiver operating mode, satellites used in the position solution, and DOP values.
GPGSV	The number of GPS satellites in view satellite ID numbers, elevation, azimuth and SNR values.
GPMSS	Signal to noise ratio, signal strength, frequency, and bit rate from a radio beacon receiver.
GPTRF	Transit fix data
GPSTN	Multiple data ID
GPXTE	cross track error, measured
GPZDA	Date and time (PPS timing message, synchronized to PPS). 150 OK to send message.

GPGGA Sentence

Following table mentions GPGGA sentence description with example.

Example of GPGGA GPS sentence: $GPGGA, 161229.487, 3723.2475, N, 12158.3416, W, 1, 07, 1.0, 9.0, M, , , , 0000*18

Name or Field	Example	Description
Message ID	`$GPGGA`	GGA protocol header
UTC time	`161229.487`	hhmmss.sss
Latitude	`3723.2475`	(37 degrees, 23.2475 minutes) ddmm.mmmm
N/S Indicator	`N`	N = North, S = South
Longitude	`12158.3416`	(121 degrees, 58.3416 minutes) dddmm.mmmm
E/W indicator	`W`	E = East or W = West

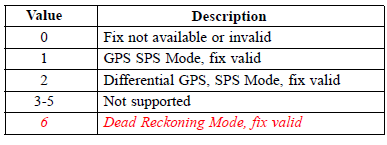

Position Fix Indicator	`1`
Satellites used	`07`	Range is 0 to 12
HDOP	`1.0`	Horizontal Dilution of Precision
MSL Altitude	`9.0`	Meters
Units	`M`	Meters
Geoid Separation		Meters
Units	`M`	Meters
Age of diff. corr.		Second
Diff. ref. station ID	`0000`
Checksum	`*18`
	`<CR><LF>`	End of message termination

GPGLL Sentence

Following table mentions GPGLL sentence description with example.

Example of GPGLL GPS sentence: $GPGLL, 3723.2475, N, 12158.3416, W, 161229.487, A, A*41

Name or Field	Example	Description
Message ID	`$GPGLL`	GLL protocol header
Latitude	`3723.2475`	ddmm.mmmm
N/S indicator	`N`	N =North or S = south
Longitude	`12158.3416`	dddmm.mmmm
E/W indicator	`W`	E =East or W = West
UTC time	`161229.487`	hhmmss.sss
Status	`A`	A = data valid or V = data not valid
Mode	`A`	A =Autonomous , D =DGPS, E =DR (This field is only present in NMEA version 3.0)
Checksum	`*41`
	`<CR><LF>`	End of message termination

GPVTG nmea sentence

Following table mentions GPVTG sentence description with example.

Example of GPVTG GPS sentence: $GPVTG, 309.62, T, , M, 0.13, N, 0.2, K, A*23

Name or Field	Example	Description
Message ID	`$GPVTG`	VTG protocol header
Course	`309.62`	degrees
Reference	`T`	True Course
Degrees		Reference M Magnetic
Speed	`0.13`	Knots, measured horizontal speed
Units	`N`	Knots
Speed	`0.2`	Km/Hr, Measured horizontal speed
Units	`K`	Kilometers per hour
Mode	`A`	A = Autonomous, D = DGPS, E = DR
Checksum	`*23`
	`<CR><LF>`	End of message termination

GPRMC Sentence

Following table mentions GPRMC sentence description with example.

Example of GPRMC GPS sentence: $GPRMC, 161229.487, A, 3723.2475, N, 12158.3416, W, 0.13, 309.62, 120598, , *10

Name or Field	Example	Description
Message ID	`$GPRMC`	RMC Protocol Header
UTC time	`161229.487`	hhmmss.sss
Status	`A`	A = data valid or V = data not valid
Latitude	`3723.2475`	ddmm.mmmm
N/S indicator	`N`	N = North or S = South
Longitude	`12158.3416`	dddmm.mmmm
E/W indicator	`W`	E = East or W = West
Speed over ground	`0.13`	knots
Course over ground	`309.62`	degrees
Date	`120598`	ddmmyy
Magnetic Variation		Degrees (E= East or W = West)
Mode	`A`	A = Autonomous, D = DGPS, E =DR
Checksum	`*10`
	`<CR><LF>`	End of message termination

Conclusion

NMEA sentences play a crucial role in GPS communication by providing structured data formats for location, speed, time, and other navigation parameters. These sentences, such as GGA (Global Positioning Fix Data), RMC (Recommended Minimum Specific GNSS Data), GSV (Satellites in View), and GSA (GNSS DOP and Active Satellites), enable GPS receivers to interpret and share positioning information accurately. Each sentence follows a standardized format, ensuring compatibility across different GPS devices and applications. Understanding NMEA sentences is essential for developers, engineers, and GPS enthusiasts looking to analyze or integrate GPS data into various tracking, mapping, and navigation systems.
