Clock Frequency versus Rise Time

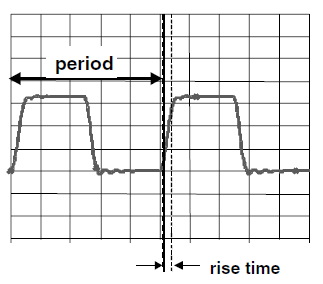

For a re-created square wave containing only a limited number of higher harmonics, bandwidth is inversely proportional to the rise time. The illustration below depicts rise time in a square waveform with approximately a 50% duty cycle.
BW = 0.35/RT
Where:
- BW is the bandwidth of a signal in GHz
- RT is the 10 to 90% rise time in nsec
Rise Time to Clock Frequency Converter
The calculator below converts rise time to clock frequency.
EXAMPLE:
- INPUT: Rise time = 0.9 nsec
- OUTPUT: Clock Frequency = 0.11 GHz
Clock Frequency to Rise Time Converter
EXAMPLE:
- INPUT: Clock Frequency = 1 GHz
- OUTPUT: Rise time = 0.1 ns
Rise Time to Clock Frequency Calculator Formula
The following equation or formula is used for Rise Time to Clock frequency conversion and vice versa.
