Introduction

Legacy RAN systems are largely rule based and static, relying on manual configuration and optimization. Hence these traditional RAN architectures do not have ability to adapt to dynamic network conditions such as varying traffic loads, user mobility and diverse requirements (such as IoT, URLLC, eMBB).

Moreover, addition of new features in latest technologies such as 5G NR and 6G make their network management more complex. These features include massive MIMO, network slicing, beamforming, ultra sense deployment etc.Traditional methods are not sufficient to manage these complexities in real time efficiently. Ti address these limitations, AI-RANs have been developed.

What is AI RAN

AI-RAN stands for Artificial Intelligence powered Radio Access Network. It refers to the integration of artificial intelligence (AI) and machine learning (ML) techniques into the Radio Access Network (RAN) of cellular systems, especially in 5G and future 6G networks. The goal is to enhance the efficiency, flexibility and intelligence of how radio resources are managed and how data is transmitted between user devices and the core network. Examples of AI powered RANs are Cloud RAN (C-RAN) and Open RAN (O-RAN).

Key Aspects of AI-RAN

• Intelligent Resource Management : Dynamically optimize spectrum, power and bandwidth allocation as per varying traffic demand and change in network conditions.
• Self-Optimizing Networks (SONs) : AI enables the RAN to automatically adjust and tune parameters for improved performance. The parameters include handover thresholds, beamforming directions etc.
• Failure Prediction : AI can detect and predict hardware/software failures in the RAN infrastructure before they impact service.
• Traffic Forecasting : Machine learning (ML) models can predict traffic load in different cells and time instants. This information helps operators to allocate resources accordingly.
• Energy Efficiency : AI algorithms can switch off or reduce power in base stations during low traffic periods to save energy.
• Beam Management : AI helps in smart beam selection, tracking and switching for improved coverage and performance. This feature is available in mmWave and massive MIMO systems.
• User Behavior Prediction : Predicting user movement and usage patterns for preemptive network adjustments such as preloading content, handovers etc.

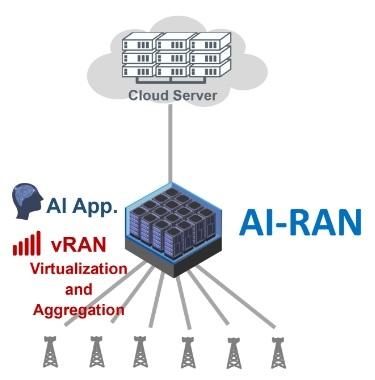

Working of AI-RAN

The AI-RAN consists of data collection, AI/ML algorithms, intelligent control logic, real time RAN optimization and feedback mechanism. Let us understand functions of all these modules to understand working of AI-RAN system.

1. Data Collection : The system collects real time data from various sources such as base stations (e.g. signal strength), user equipment behaviour (AI app usage, movement) and network KPIs (latency, throughput, congestion levels).

2. AI/ML models : ML models are trained as per historical data to predict traffic surge. Moreover models are installed in the network to make real time inferences such as anomaly detection, traffic demand prediction, interference prediction etc.

3. Intelligent Control Logic : With the help of AI, following network control functions are performed by this module.

• Dynamic Spectrum Allocation : Frequency bands are optimized to minimize interference.
• Beamforming/Tracking : Beams are directed toward users as per their position and signal quality.
• Load Balancing : Users are re-directed to nearby cell towers in order to prevent single cell from overloading
• Energy optimization : Underutilized components are powered off during off peak hours.

4. Real time RAN optimization : Control logic powered by AI communicates with various RAN components such as gNB, eNB, DU, CU to apply following.

• Reconfigure antenna parameters
• Adjust transmit power
• Change scheduling policies

5. Feedback Mechanism : The AI models are upgraded periodically after monitoring various performance parameters and KPIs. This improves decision making process.

Benefits of AI RAN

Following are some of the advantages of AI RAN.

1. Self-Optimizing Network (SON) Capabilities
2. Improved Spectral Efficiency
3. Energy Efficiency and Sustainability
4. Enhanced User Experience (QoE)
5. Predictive Maintenance and Fault Detection

Challenges of AI RAN

Following are some of the disadvantages of AI RAN.

1. AI models often require large scale user and network data, raising privacy concerns
2. Integrating AI with legacy systems and diverse vendor equipment can be challenging, especially in multi vendor, heterogeneous network environments.
3. The performance of AI-RAN depends heavily on the availability and quality of training data; poor data can lead to inaccurate decisions or bias.

AI RAN providers

Conclusion

AI-RAN represents a transformative leap in radio access technology, offering the potential for self optimizing, context aware and highly adaptive wireless networks. By embedding intelligence into the RAN, operators can achieve greater spectral efficiency, reduced energy consumption, enhanced user experience and operational cost savings.
