GDDR vs DDR

GDDR (Graphics Double Data Rate) and DDR (Double Data Rate) are types of synchronous dynamic random-access memory (SDRAM) used in computer systems, but they are designed for different purposes.

Both DDR and GDDR are memories used for CPU and GPU respectively. DDR is used as system memory with CPU (i.e. Central Processing Unit) in your PC. GDDR memory is used with GPU (i.e. Graphics Processing Unit) to speed up performance of graphics card. Both CPU and GPU processors are interfaced using PCI Express slot.

DDR Memory

DDR memory is a type of SDRAM commonly used as system memory (RAM) in computers for general-purpose computing tasks. It synchronizes with CPU timing or clock signal. DDR memory transfers data on both the rising and falling edges of the clock signal, effectively doubling the data transfer rate compared to traditional SDRAM. There are two types of SDRAM viz. SDR (Single Data Rate) and DDR (Double Data Rate).

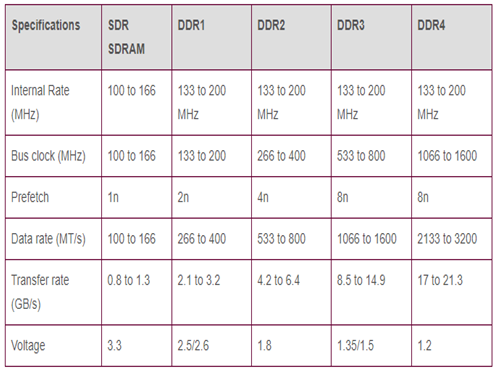

Table-1 difference between DDR memory types

DDR memory is commonly found in various generations, such as DDR, DDR2, DDR3, and DDR4, with each generation offering improvements in terms of speed and efficiency. The table compares different types of DDR memories.

GDDR Memory

GDDR is a specialized type of DDR memory designed specifically for graphics processing units (GPUs) in graphics cards. GDDR is optimized for graphics-intensive tasks, including rendering complex images and textures in video games and other graphics applications. While GDDR shares some similarities with DDR, it often has different features and optimizations tailored for the high bandwidth requirements of graphics processing.

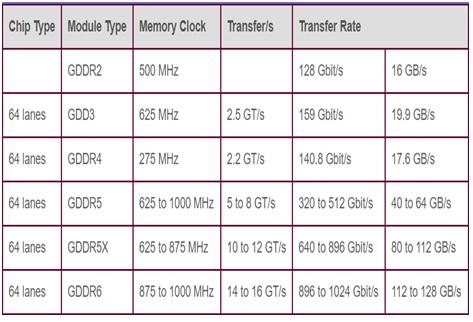

Table-2 difference between GDDR memory types

there are different generations of GDDR viz. DDR1 to GDDR5, GDDR5X and GDDR6 and GDDR6X with each generation offering improved performance and bandwidth. It is manufactured by Samsung, Micron, ELPIDA and Hynix and available in various sizes. The table compares different types of GDDR memories.

Tabular Difference between GDDR and DDR memory

Following table compares GDDR vs DDR and derives differences between both memory types.

Specifications DDR GDDR
Intended Use case General purpose system memory Specialized graphics processing unit (GPU) memory
Primary purpose General computing tasks Graphics rendering and processing
Data transfer rate Varies by generations e.g. DDR4 Varies by generations e.g. GDDR6
Clock Speed Moderate clock speeds Higher clock speeds for increased bandwidth
Bandwidth efficiency Emphasizes overall system performance Prioritizes high bandwidth for graphics tasks
Generations DDR, DDR2, DDR3, DDR4 etc. GDDR3, GDDR4, GDDR5, GDDR5x, GDDR6 etc.
Bandwidth Lower Higher
Power consumption High Low
Heat dispersal requirements Higher Lower
Performance Low High
Capacity Low High
Cost Less More
Typical Applications PCs, laptops, servers Graphics cards, video game consoles

Conclusion : In summary, the main difference between GDDR and DDR lies in their intended use cases. DDR is used as general system memory, while GDDR is designed for the specialized needs of graphics cards and other graphics processing units. The distinctions between DDR and GDDR include optimizations for different types of data access patterns, bandwidth requirements and the specific demands of graphics-related tasks.
