An RF to DC energy harvester converts ambient radio frequency energy into usable direct current power for low power electronic devices. These systems support battery free operation in wireless sensors, IoT devices, smart tags, wearable electronics, and remote monitoring applications where conventional power sources are limited. The popular manufacturers of RF to DC converter IC modules include Powercast Corporation, E-Peas, RF DIAGNOSICS etc.
RF to DC Converter Introduction
The chip device or module which converts RF energy to DC (Direct Current) energy is known as an RF to DC energy harvester. They provide harvested energy to the storage elements attached. The typical applications include capacitor and battery recharging, battery less wireless sensors, low power consumer electronics, sensors, displays and microprocessors etc.
The RF to DC conversion reference designs are developed specific to different standards viz. NFC, UHF, WiFi, Bluetooth, 4G and various frequency ranges (13.56 MHz, 915 MHz, 2.45 GHz, 1710-1915 MHz).

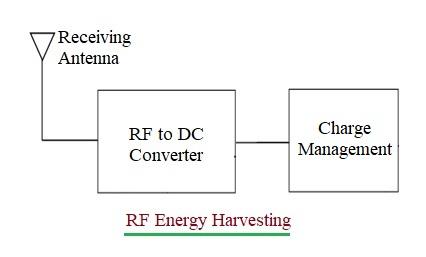

The figure depicts the position of the RF to DC converter module in an RF energy harvesting system. As shown, it is placed between the RF antenna and the charge management module. The charging module can either be a capacitor which stores charge or a rechargeable battery.
RF Energy Harvesting Selection Guide
Following generic features or specifications are considered for selecting an RF to DC converter for an energy harvesting circuit:
- Wide operating frequency range
- Wide operating power range
- Wide operating temperature range
- Higher RF to DC conversion efficiency
- Should harvest almost all modulation schemes
- Input and Output impedance for connections
- Interoperability with various RF sources such as NFC, WiFi, Bluetooth, UHF, 4G etc.
- Profile or dimensions
- Better sensitivity
- RoHS compliance
Benefits of RF to DC Harvester
An RF to DC energy harvester converts ambient RF signals into usable DC power, enabling battery-free or low-power operation for IoT devices, wireless sensors, and remote monitoring systems. It enhances energy efficiency by harvesting power from existing RF sources like Wi-Fi, cellular networks, and TV signals.
This technology reduces dependence on wired power or frequent battery replacements, making it ideal for smart cities, medical implants, and industrial automation. Additionally, it supports sustainable energy solutions by utilizing ambient RF energy, promoting eco-friendly and cost-effective power alternatives for low-power electronics.
RF to DC Energy Harvester Manufacturers or Vendors
Following is the list of RF to DC energy harvester manufacturers or vendors.
| Manufacturers | Description |
|---|---|
| Powercast Corporation, Pittsburgh, PA 15238, Unites States | PCC110 and PCC114 chips are used as RF to DC converters. These chips support a frequency range from 10MHz to 6GHz and delivers a conversion efficiency of about 75%. Read datasheets for maximum ratings of input power, output voltage, output current, temperature etc. Website : www.powercastco.com Email : info@powercastco.com |
| E-Peas, Belgium | Module : AEM40940 Features : Supports wide frequency ranges viz. 868 MHz, 915 MHz and 2.4 GHz. Website : e-peas.com Email : sales@e-peas.com |
| RF DIAGNOSICS, NEW YORK, UNITED STATES | Module : RFD102A Features : Supports 60 Hz to 6 GHz frequency range, available in QFN module with 18mA (max.) output. Website : www.rfdiagnostics.com Email : INFO@RFDIAGNOSTICS.COM |
Summary
RF to DC energy harvesters convert ambient RF signals into electrical power for low-energy electronics. Manufacturers develop harvesting solutions for IoT sensors, smart labels, wearables, and energy-efficient wireless devices.
