A millimeter wave power amplifier is a high frequency RF amplification device designed for E-band, V-band, and W-band communication systems. These amplifiers provide high output power, gain, and efficiency for applications such as 5G backhaul, radar systems, satellite communications, aerospace electronics, and advanced wireless networks. The mm wave power amplifier operates in various bands, including E band, V band, and W band.
Introduction
A power amplifier that operates in the millimeter frequency range (i.e., 30 GHz to 300 GHz) is known as a millimeter wave power amplifier.

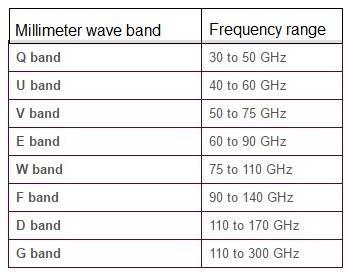

The following table outlines the various millimeter wave frequency bands:
A power amplifier is typically used before mmWave signal transmission from an antenna. It amplifies the signal to compensate for path loss. It’s a crucial component in millimeter wave systems, employed in a wide array of applications such as communication transceivers, radar front-ends, and power blocks for multiple chains.
Technical Specifications of Millimeter Wave Power Amplifiers
Here are the key technical specifications you’ll find when looking at millimeter wave power amplifiers:
- Operating Frequency range
- Output Power (Psat), 1 dB compression Point
- Gain (dB)
- Gain Flatness (dB)
- Bias voltage
- Current (mA)
- Input drive level
- Maximum RF input power
- Input/Output Return Loss
- Temperature range of operation
Millimeter Wave Power Amplifier Manufacturers or Vendors
The following table lists some Millimeter wave power amplifier manufacturers or vendors:
| Manufacturers | Description |
|---|---|
| MI-WAVE, Millimeter Wave Products, Inc. , FL 33702 Email: sales@miwv.com | Millimeter Wave Power Amplifier for 5G technology which operates from 27 GHz to 34 GHz range. |
| QuinStar Technology, Inc., CA 90505 | Available from 18 to 95 GHz frequency range |
| Ducommun Incorporated | High power amplifiers are available in frequency range from 18 to 96 GHz. |
| Farran Technolgy, Co. Cork, Ireland sales@farran.com | Available in various frequency ranges starting from 43 GHz up to 110 GHz. |
| Panda Microwave, Wuhou avenue, Chengdu | Different versions for frequency range (25.5 GHz to 46 GHz) are available. |
Summary
Millimeter wave power amplifiers amplify high-frequency RF signals in E, V, and W bands. Manufacturers provide these amplifiers for 5G infrastructure, radar, satellite communication, aerospace, and defense applications.
