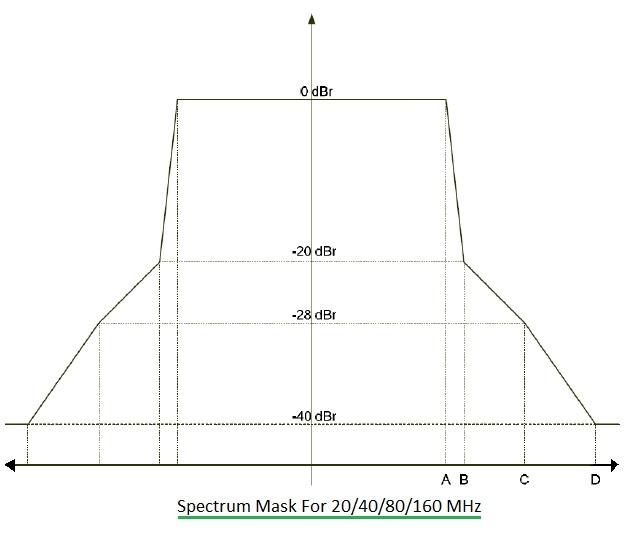

This page of the WLAN 802.11ac tutorial covers the 802.11ac transmitter spectral mask.
| Channel Size | Point A (0 dBr) | Point B (-20dBr) | Point C (-28dBr) | Point D (-40dBr) |
|---|---|---|---|---|
| 20 MHz | 9 MHz | 11 MHz | 20 MHz | 30 MHz |
| 40 MHz | 19 MHz | 21 MHz | 40 MHz | 60 MHz |
| 80 MHz | 39 MHz | 41 MHz | 80 MHz | 120 MHz |
| 160 MHz | 79 MHz | 81 MHz | 160 MHz | 240 MHz |
