Sensor Vs Actuator : 5 differences with Real World Examples
Advertisement
Introduction : In every modern electronic and automation system, sensors and actuators form the foundation of interaction between the digital world and the physical world. While sensors gather information from the environment; actuators use that information to perform an action.
Understanding the difference between these two components is essential for fields ranging from IoT and robotics to industrial automation and smart devices. Sensors serve as the input devices that provide data, while actuators are the output devices that act based on that data. Together, they enable closed loop systems that can sense, decide, and respond intelligently.
This page will explore the roles of sensors and actuators, highlight their differences, and provide practical real-world examples to show how they work together in everyday applications.
Sensor
- It is a device which detects or measures a physical quantity and converts it into a readable signal.
- Physical quantity can be temperature, light, pressure, gas, motion etc.
- Readable signal output can be electrical, optical,digital etc.
- Function : The sensor senses the environment and converts input data to output data to be sent to a controller or actuator as follows.
Real World Examples: Sensor acts as input device in the system. Some of the real world examples are as follows.
- Temperature sensor (LM35, DS18B20) : measures ambient temperature in HVAC systems.
- Gas sensor (TGS2611, MQ-4) : detects methane leaks in industries.
- Proximity sensor (Inductive, capacitive, ultrasonic) : used in robotics for obstacle detection.
- Pressure sensor (Bosch BMP280, Honeywell 26PC) : measures fluid/gas pressure in pipelines.
- Light sensor (LDR, photodiode, TSL2561) : used in street lighting automation.
Actuator
- It is a device which converts electrical/control signal into physical action.
- The output can be movement, rotation, heat, light, sound etc.
- Function : The actuator receives the commands and acts on converting input to perform some action on the environment.
Real World Examples: Actuator acts as output device in the system. Some of the real world examples are as follows.
- Electric motor (DC motor, stepper, servo) : drives robotic arms, fans, pumps.
- Relay : switches on/off high-power circuits (lights, heaters, motors).
- Solenoid valve : controls liquid/gas flow in pipelines.
- Heater element : produces heat in electric kettles, ovens, or incubators.
- Speaker/Buzzer : produces sound alarms in safety systems.

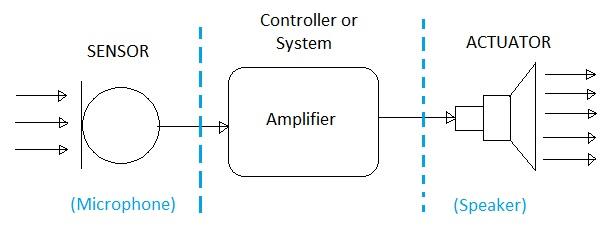

The figure depicts microphone acting as sensor and speaker acting as actuator. Here microphone converts sound waves into electrical signal where as speaker converts electrical signal back into sound waves.
Key Differences
Parameter | Sensor | Actuator |
---|---|---|
1. Function | Detects physical changes in environment | Produces physical action (motion, heat, sound etc.) |
2. Signal Flow | From physical world to electrical signal | From electrical signal to physical action |
3. Dependency | Works passively, needs stimulus such as temp, gas, light etc. | Works actively, requires command or control signal |
4. Role in the system | Acts as input device | Acts as output device |
5. Examples | Temperature sensor, pressure sensor, gas sensor, accelerometer, light sensor | Motor, relay, solenoid, speaker, heater |
Conclusion: In summary, sensors feel and sense the world and provides data for actuators to perform tasks. Together, they form foundations of automation systems, with a controller (like PLC, Arduino or microcontroller) in between them.
