What is RF Isolator : S-Matrix Explained

An RF isolator is a two port passive microwave device that allows radio frequency signals to flow in only one direction, preventing harmful reflections. In microwave engineering, its behavior is mathematically described using a Scattering Matrix (S-Matrix). An ideal isolator’s S-Matrix shows zero reflection at the input port, full transmission in the forward direction, and zero transmission in the reverse direction.

What is an RF Isolator?

As we know, an RF Isolator is a 2-port microwave device that forwards the signal in one direction and blocks the signal in the other direction. It is used for a wide variety of applications such as the protection of test and measurement equipment, and delicate devices such as MMIC amplifiers and attenuators.

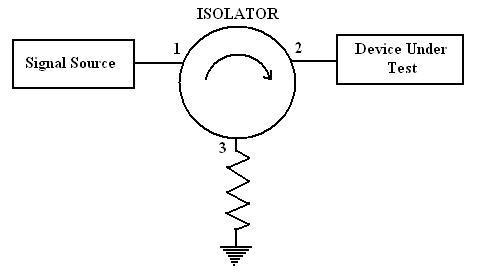

Figure 1: Working of RF Isolator

As shown in Figure 1, the RF signal can pass from port-1 to port-2 only with port-3 terminated.

Following are the typical specifications of an isolator device:

• Operating frequency range
• Isolation from port-2 to port-1
• Insertion Loss from port-1 to port-2
• VSWR (Voltage Standing Wave Ratio)

RF Isolator S-Matrix (Scattering Matrix)

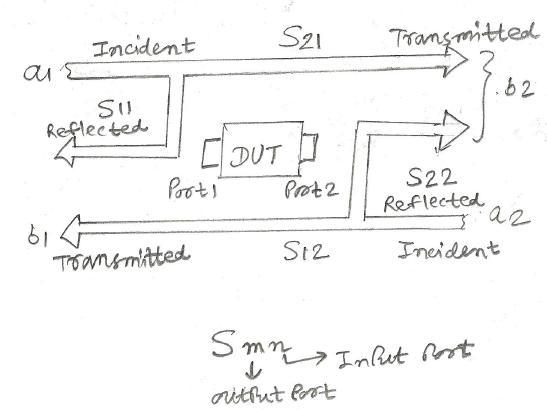

Figure 2: 2-Port Scattering Parameters

As an Isolator is a 2-port device, let’s consider a simple 2-port network as shown in Figure 2. Waves traveling towards the n-port are $a_i = (a_1, a_2, ...., a_n)$ and waves traveling away from the n-port are $b_i = (b_1, b_2, ...., b_n)$.

The relation between $a_i$ and $b_i$ can be expressed by the following equations:

$b_1 = S_{11}*a_1 + S_{12}*a_2$

$b_2 = S_{21}*a_1 + S_{22}*a_2$

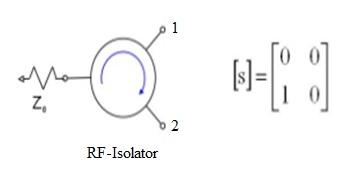

Figure 3: RF Isolator S-Matrix

From the above, the S-matrix can be written as follows:

Isolator S-matrix = $\begin{bmatrix} S_{11} & S_{12} \\ S_{21} & S_{22} \end{bmatrix}$

Here:

• $S_{11}$ is the input reflection coefficient with the output terminated by a matched load.
• $S_{21}$ is the forward transmission from port-1 (input) to port-2 (output).
• $S_{12}$ is the reverse transmission from port-2 to port-1.
• $S_{22}$ is the output reflection coefficient.

Here,

$S_{11} = \frac{b_1}{a_1}$, $S_{12} = \frac{b_1}{a_2}$, $S_{21} = \frac{b_2}{a_1}$, $S_{22} = \frac{b_2}{a_2}$

Figure 3 depicts the RF Isolator S-matrix, i.e., the Scattering matrix.

Summary

The S-Matrix provides a critical mathematical framework for understanding and evaluating the exact directional performance of an RF isolator. Mastering these matrix parameters ensures microwave engineers can accurately protect sensitive amplifiers from destructive reverse power.
