Mechanical vs Electrical Oscillators: A Comparison

This article compares mechanical and electrical oscillators, highlighting their differences. We will also derive the equation of an electrical oscillator equivalent to a harmonic oscillator.

Introduction

Oscillators are fundamental components in most communication systems and test & measurement equipment. Their specifications and tolerances directly impact the performance of these systems. Several key parameters are considered during oscillator design, including:

  • Frequency sensitivity
  • Frequency stability (short-term and long-term drifts)
  • Oscillator noise
  • Amplitude stability

Mechanical Oscillator (Harmonic Oscillator)

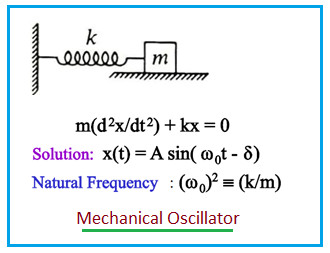

Mechanical Oscillator, Harmonic Oscillator

  • Figure 1 depicts a simple mechanical oscillator, such as a mass attached to a spring. This structure is similar to a pendulum and is also known as a harmonic oscillator.
  • When a body attached to a spring is displaced from its equilibrium position, the spring exerts a restoring force, pulling it back towards equilibrium. This force causes the system to oscillate or undergo periodic motion.
  • The relationship between period (T) and frequency (f) of oscillation is: f=1Tf = \frac{1}{T}.
  • Angular frequency (ω) is approximately 2π2\pi times the frequency: w=2πfw = 2\pi f.
  • When the restoring force is directly proportional to the displacement from equilibrium, the motion is called simple harmonic motion, and the oscillator is a Harmonic Oscillator.

Electrical Oscillator

Electrical Oscillator

  • Figure 2 shows the electrical analogy of a mechanical oscillator. This is an example of an electronic or electrical oscillator. Different types exist, including RC oscillators, LC oscillators, and crystal oscillators.
  • An LC circuit consists of an inductor (L) and a capacitor (C). Initially, the capacitor is charged, inducing a current in the inductor. Subsequently, the current and voltage oscillate harmonically according to the following equations: V=Vmaxcos(wt+Φ)V = V_{max} \cdot cos(wt + \Phi) I=Imaxcos(wt+Φ+90)I = I_{max} \cdot cos(wt + \Phi + 90)

Deriving the Differential Equation for an Electrical Oscillator

Let’s derive the differential equation that represents an electrical oscillator:

  • The capacitor discharges (or charges) through the inductor. Therefore, the current (I) in the inductor and the charge (Q) on the capacitor are related as: I(t)=dQdtI(t) = \frac{dQ}{dt}.

  • Consequently, the voltage across the inductor is related to the second time derivative of the charge as: VL(t)=LdIdt=Ld2Qdt2V_L(t) = -L \cdot \frac{dI}{dt} = -L \cdot \frac{d^2Q}{dt^2}.

  • In an LC circuit, the voltage across the inductor must be the same as the voltage across the capacitor. Hence, VL=VC=QCV_L = V_C = \frac{Q}{C}.

  • Comparing the last two equations, we get: Ld2Qdt2=VL=VC=1CQ(t)-L \cdot \frac{d^2Q}{dt^2} = V_L = V_C = \frac{1}{C} \cdot Q(t).

  • This second-order differential equation for charge has the form of a harmonic oscillator.
