In microwave communication systems, multiple signals often need to share the same transmission path or antenna without causing mutual interference. Passive microwave devices such as multiplexers and diplexers are used to efficiently combine and separate signals operating at different frequencies. Although both devices perform signal routing, they differ in the number of channels they handle, their construction, and their typical applications.
What is Microwave Multiplexer

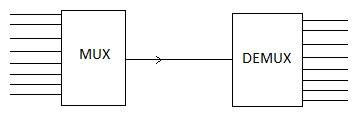

A microwave multiplexer is a passive RF network that combines three or more microwave frequency channels into a single transmission line or antenna and separates them again at the receiving end. It uses carefully designed microwave filters so that each channel occupies a distinct frequency band with minimal interference.
A microwave multiplexer is widely used in satellite communication, cellular base stations, radar systems, and microwave relay networks where efficient use of transmission resources is essential.
Advantages of Microwave Multiplexer
- Efficient use of available spectrum.
- Allows multiple communication channels over a single transmission path.
- Reduces hardware and antenna requirements.
- Provides high channel isolation.
- Minimizes insertion loss when properly designed.
What is Microwave Diplexer
A microwave diplexer is a passive three-port microwave device that combines or separates two different frequency bands while allowing them to share the same transmission line or antenna.
Unlike a multiplexer, which supports several channels, a diplexer is specifically designed for two frequency bands.
Advantages of Microwave Diplexer
- Enables one antenna to operate at two frequency bands.
- Reduces antenna and cable requirements.
- Simple and compact design.
- High isolation between the two frequency bands.
- Low insertion loss.
Comparison Between Microwave Multiplexer and Microwave Diplexer
| Feature | Microwave Multiplexer | Microwave Diplexer |
|---|---|---|
| Definition | Combines or separates multiple microwave frequency channels | Combines or separates two frequency bands |
| Number of Channels | Three or more | Two |
| Number of Ports | Multiple input ports and one common port (configuration varies with design) | Three ports (two frequency ports and one common port) |
| Frequency Selection | Uses separate band pass filters for each channel | Uses complementary low pass and high pass (or equivalent band-selective) filters |
| Working Principle | Combines many frequency channels into one transmission path and separates them at the receiver | Combines two different frequency bands into one transmission path and separates them at the receiver |
| Complexity | More complex | Simpler |
| Channel Capacity | High | Limited to two bands |
| Hardware Cost | Higher | Lower |
| Size | Larger | More compact |
| Spectrum Utilization | Supports multiple independent channels | Supports two independent frequency bands |
| Antenna Sharing | Multiple channels share one antenna | Two frequency bands share one antenna |
Summary
Microwave multiplexers and diplexers are essential passive components in modern RF and microwave communication systems. A microwave multiplexer combines or separates several microwave channels, allowing efficient spectrum utilization and reducing infrastructure requirements in high capacity networks. A microwave diplexer, in contrast, combines or separates two frequency bands so that a single antenna or transmission line can be shared efficiently. The choice between the two depends on the number of frequency channels, system complexity, and application requirements.
