Frame Check Sequence(FCS) Labview VI source code

This page of labview source code covers Frame Check Sequence(FCS) labview vi. It is used for error detection in the packet or frame at the receiver. It also provides link to download FCS labview VI source code.
Polynomial used in this FCS vi is D8+D2+D+1

FCS Labview VI Block Diagram

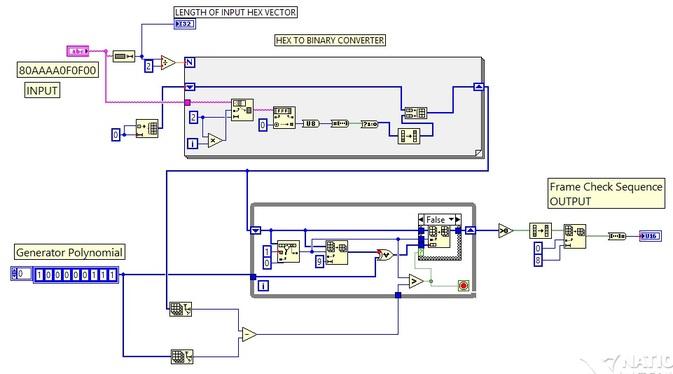

Following fig-1 mentions block diagram of FCS labview vi.

FCS labview vi block diagram

Frame Check Sequence Labview VI Front Panel

Following fig-2 mentions front panel of Frame Check Sequence labview vi.

Frame Check Sequence labview vi front panel

Download Frame Check Sequence(FCS) Labview code

Download FCS labview vi source code file.
