Design of 8 to 1 multiplexer labview vi code
There are 8 input lines, 1 output line and 3 selection lines available in 8 to 1 multiplexer. Based on values on selection lines one input line is routed to the output port. Following truth table mentions the same logic in tabular form.
| S2 | S1 | S0 | Output |
|---|---|---|---|
| 0 | 0 | 0 | INPUT1 |
| 0 | 0 | 1 | INPUT2 |
| 0 | 1 | 0 | INPUT3 |
| 0 | 1 | 1 | INPUT4 |
| 1 | 0 | 0 | INPUT5 |
| 1 | 0 | 1 | INPUT6 |
| 1 | 1 | 0 | INPUT7 |
| 1 | 1 | 1 | INPUT8 |

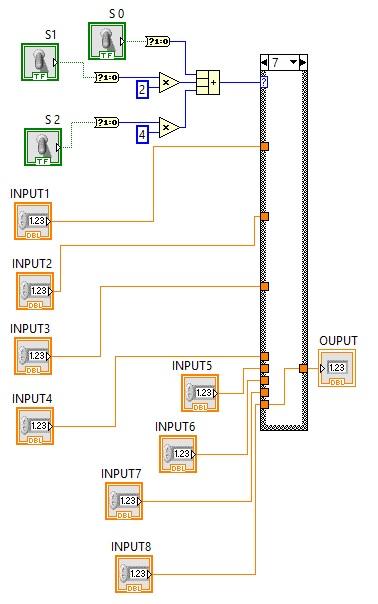

8 to 1 Multiplexer labview vi block diagram
Following fig-1 mentions block diagram of 8 to 1 multiplexer labview vi.

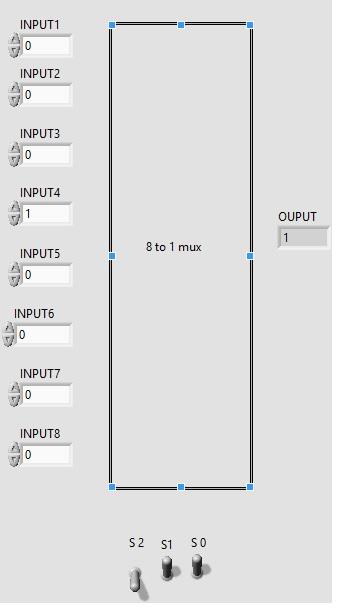

8 to 1 Multiplexer labview vi front panel
Following fig-2 mentions front panel of 8 to 1 multiplexer labview vi.
Download 8 to 1 multiplexer Labview source code file
Download 8 to 1 multiplexer labview vi source code files.
