P-N Junction Diode Calculator & Formula : Shockley Tool

A P-N junction diode is a basic semiconductor device that allows current to flow in one direction while blocking it in the opposite direction. Its behavior is governed by the Shockley diode equation, which relates diode current to applied voltage and temperature. The P-N Junction Diode Calculator uses this fundamental relationship to help users analyze diode current, forward voltage drop and operating conditions with ease.

P-N Junction Diode Calculator

Inputs Clear Input

Reverse saturation current (Is) (input1) :

Drain Voltage, (Vd) (input2) :

Ideality Factor (n) (input3) :

Thermal Voltage, mV (input5) :

Outputs Calculate

Forward Diode Current (Id) in uA (output1) :

EXAMPLE:

INPUTS:

• Reverse saturation current (Is) = 1.0e-12
• Drain Voltage, (Vd) = 0.7 Volts
• Ideality Factor (n) = 1.5
• Thermal Voltage (Vt) = 26 mV

OUTPUT:

• Forward Diode Current (Id) = 62.37 uA

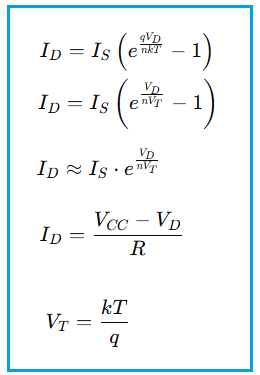

P-N Junction Diode Formula

Summary:

The P-N junction diode calculator enables fast evaluation of diode current and voltage characteristics using standard diode formulas. It is an effective tool for understanding forward and reverse bias behavior, verifying circuit calculations, and supporting learning in semiconductor electronics and circuit analysis.
