Effective Antenna Aperture Calculator | Capture Area

The Effective Antenna Aperture Calculator computes the physical area through which an antenna collects power from an incoming electromagnetic wave. It’s directly tied to gain and frequency.

Inputs Clear Input

Operating Frequency, GHz (input1) :

Antenna Gain, dB (input2) :

Outputs Calculate

Effective Antenna Aperture, meter^2 (output1) :

EXAMPLE:

• INPUTS:

  • Operating Frequency of Antenna = 1 GHz (Wavelength = 0.3 meters)
  • Antenna Gain in dB = 10

• OUTPUT:

  • Effective Antenna Aperture (in meter^2) = 0.0716

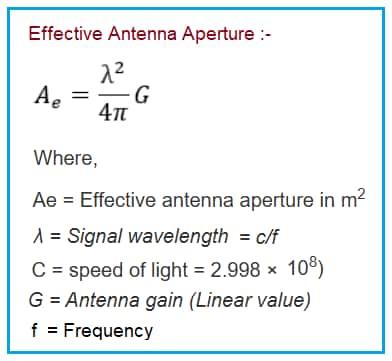

Antenna Aperture Formula

Benefits/Applications

• Translates gain to physical size: Helps visualize how antenna gain correlates with aperture.
• Useful for receiver design: Determines how much power an antenna can capture.
• Important for satellite and radar systems: Where aperture directly impacts performance.

Summary:

Use this calculator to quantify how effectively an antenna intercepts incoming energy, converting gain measurements into a tangible effective aperture size.
