RF Transformer: Selection Guide, Benefits & Leading Manufacturers

Introduction : RF transformers are essential for impedance matching, isolation and signal conversion in RF circuits. Key parameters for its selection include frequency range and insertion loss.

What is RF transformer:

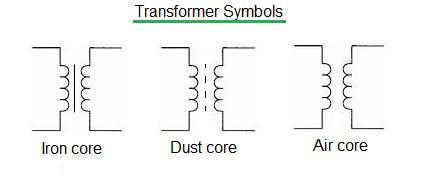

The most widely and most common core used for RF Transformer is toroid. A toroid is circular doughnut shaped core made of special type of powdered iron material. To make RF transformer, copper wire is wound on the toroid to create both primary and secondary windings. The figure-1 depicts different transformer symbols as per core used. Refer transformer basics and types>> and RF transformer calculator>> for more information.

transformer

Selection guide of RF Transformer

Following are key selection parameters.
• Frequency range
• Impedance ratio such as 1:1. 4:1. 16:1
• Insertion loss : Should be lower to ensure minimal attenuation of the signals.
• RF Power level capability
• Phase balance & linearity
• Size
• Packaging : SMD or through hole
• Core : Ferrite or air or transmission line type
• Environment stability : Should operate reliably under varying temperature, humidity or electromagnetic conditions.

Benefits of RF Transformer

Following are some of the advantages of RF Transformers.
1. Ensures efficient power transfer between RF circuits, reducing signal reflection and losses.
2. Provides electrical isolation between circuits, preventing unwanted interference and protecting sensitive components.
3. Supports applications across RF, microwave, and millimeter wave frequencies for versatile use.
4. Available in miniaturized designs, making it suitable for space constrained applications like mobile devices and satellite systems.
5. Minimizes phase and amplitude imbalances, ensuring high quality signal transmission in RF communication systems.

Manufacturers of RF Transformer

Following table lists popular manufacturers or vendors of RF transformer.

RF transformer Manufacturers Description
Coilcraft, USA
Website: www.coilcraft.com/
Johanson Technology, USA
Website: https://www.johansontechnology.com/
AVX Corporation, USA
Website: www.avx.com/
MiniRF, USA
Website: www.minirf.com/
MACOM, USA
Website: https://www.macom.com/
Mini-Circuits
Website: https://www.minicircuits.com/
RFMW, USA
Website: https://www.rfmw.com/
Murata, Japan
Website: www.murata.com
Pulse electronics, USA
Website: https://www.pulseelectronics.com/
Synergy Microwave Corporation
Website: synergymwave.com

Conclusion

Choosing the right RF transformer enhances signal integrity. Select from top manufacturers for optimal performance.
