What is RF Signal

Radio Frequency (RF) waves are a subset of electromagnetic (EM) waves. Electromagnetic waves encompass a broad spectrum of waves that propagate through space and carry energy. This EM spectrum includes various types of waves, such as radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, X-rays, and gamma rays. Let us understand RF fundamentals including RF Signal and explore RF Communication basics with examples.

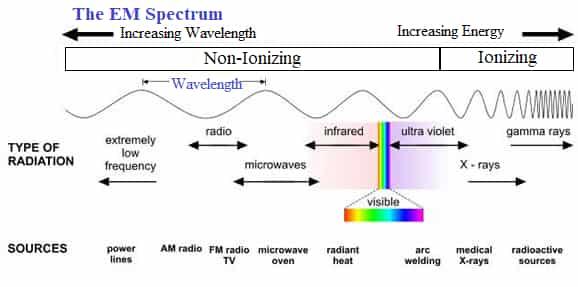

RF stands for Radio Frequency, and an RF signal refers to an electromagnetic wave used to transmit information wirelessly. These signals typically fall within the frequency range of 3 kHz to 300 GHz. RF signals are widely utilized in various communication systems, including radio and television broadcasting, mobile phones, Wi-Fi networks, satellite communication and radar systems. The figure-1 depicts radio frequency (RF) waves in non-ionizing side of the spectrum.

Ionizing vs Non-ionizing radiation

Key characteristics of RF signals are as follows.
➨RF signals operate within a specific frequency range, and the frequency determines various aspects of the signal, such as its ability to penetrate obstacles and its data-carrying capacity.
➨The amplitude of an RF signal represents its strength or intensity. It is the measure of the maximum deviation of the signal from its average value.
➨Information is conveyed over RF signals through a process known as modulation, where a carrier wave's properties (such as amplitude, frequency, or phase) are altered to encode the data. Information can either be analog (e.g. audio) or digital (e.g. binary data); based on which there are analog and digital modulation types.
➨RF signals can propagate through free space or various transmission mediums such as cables,waveguides etc. based on their frequency. Lower frequency signals tend to travel longer distances and penetrate obstacles better than higher frequency signals.
➨RF signals are transmitted and received using antennas. Antennas are designed to efficiently radiate or capture electromagnetic waves at specific frequencies. Mainly there are two types of antennas viz. omni-directional and directional. There are other antenna types based on their functions and technologies where they have been used.

Radio Frequency Bands

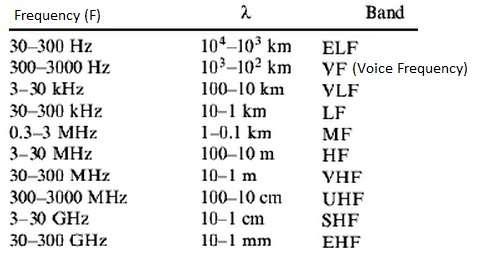

The figure-2 depicts RF range of frequencies, their band designations (ELF, VF, VLF, LF etc.) and wavelengths. The relationship between frequency ('f') and wavelength ('λ') for any type of wave, including RF waves is expressed as per following equation.
➨ c = f * λ
c = speed of light in the medium in which wave is propagating, its value is 3 x 108 meters per second in a vacuum.
f = Frequency of the wave in Hertz (Hz)
λ = Wavelength of the wave in meters

The range of an RF signal can be estimated using the Friis Transmission Equation, which provides a simple model for free-space path loss.
➨ Pr = Pt + Gt + Gr - 20*log(d) - 20*log(f) + L
Pr = Received power in dBm, Pt = Transmitted power in dBm, Gt = Transmit antenna gain in dBi, Gr = receive antenna gain in dBi, d = distance between transmitter and receiver in meters, f = frequency of RF signal in Hz, L = system loss in dB accounting other losses (~ 2 dB).

RF Communication Examples

RF communication is fundamental to wireless networking domain, allowing devices to exchange information without the need for physical cables. In wireless networking, RF signals are used to transmit data between devices over the air.

RF communication is broadly classified into analog RF and digital RF communications.
In analog RF communication, RF signals are characterized by continuously changing amplitudes, frequencies or phases. These variations in the signal correspond to the variations in the original information being transmitted, such as voice or music.
Digital RF communication, information is transmitted using discrete, binary signals rather than continuous, analog waveforms. data is represented in the form of digital bits (0s and 1s), and sophisticated modulation techniques ( OFDM, QPSK, 16QAM, 64QAM, 256QAM etc. ) are employed to encode these bits onto the RF carrier wave. These modulation schemes help to encode multiple bits on single carrier frequency to achieve higher data rates.

RF communication between mobile and cellular,wifi

Following examples are useful for beginners.
1. Wireless Local Area Network (WLAN): Wi-Fi
Example: Imagine you have a Wi-Fi router at home.
Transmission: The router sends RF signals (Wi-Fi signals) into the air.
Reception: Your laptop or smartphone has a Wi-Fi adapter that captures these signals.
Communication: Your device and the router exchange data over these RF signals, enabling internet access without a physical connection.

2. Bluetooth
Example: Connecting your smartphone to wireless earbuds.
Transmission: Your smartphone sends RF signals (Bluetooth) to your wireless earbuds.
Reception: The earbuds have a Bluetooth receiver to capture these signals.
Communication: Audio data is transmitted wirelessly, allowing you to listen to music or take calls without any cables.

3. Cellular Networks

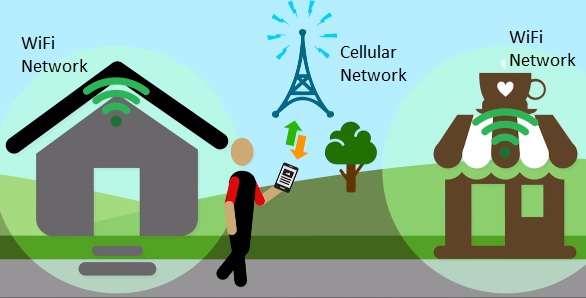

Example: Making a call on your mobile phone as shown in the figure-3.
Transmission: When you make a call, your phone sends RF signals (cellular signals) to the nearest cell tower.
Reception: The cell tower captures these signals.
Communication: The call data is transmitted between your phone and the cell tower, facilitating the conversation.

4. Remote Controls
Example: Using a TV remote control.
Transmission: Pressing a button on the remote control sends RF signals (infrared signals in this case) to the TV.
Reception: The TV has an infrared receiver that captures these signals.
Communication: The TV responds to the remote's signals by changing channels, adjusting volume, etc.

5. RFID (Radio-Frequency Identification)
Example: Accessing a building with an RFID card.
Transmission: When you swipe your RFID card, it emits RF signals.
Reception: The card reader captures these signals.
Communication: The building's access system verifies your card's information, allowing or denying entry.

Applications of Radio Frequency (RF)

Radio Frequency (RF) technology has a wide range of applications across various industries due to its ability to transmit information wirelessly. Here are some common applications of radio frequency:
• Wireless communication systems including mobile networks, Wi-Fi, Bluetooth, Two-way radios etc.
• Radio and Television Broadcasting
• Satellite Communication systems used for private and public communications as well as GPS.
• Radar systems use RF signals to track position of aircrafts in real time.
• Weather radar and remote sensing satellites use RF signals to study atmospheric and other parameters.
• RF is used in various medical applications such as MRI (Magnetic Resonance Imaging), RF ablation etc.
• Used in automotive systems for keyless entry systems in vehicles and pressure monitoring systems.
• Other applications : Consumer electronics (wireless charging, air conditioners etc.) , RFID, industrial applications and so on.

Conclusion : In summary, RF communication involves the transmission of information wirelessly using Radio Frequency signals. This RF technology is foundational for various applications including wireless networks, radio and television broadcasting, satellite communication and radar systems. Understanding RF signals is essential for designing effective wireless communication systems across diverse industries.
