What is RF Front end ?
The RF (Radio Frequency) front end refers to the portion of communication device that handles transmission and reception of RF signals using antenna. It refers to initial stages of wireless system where signal from environment (such as airwaves) is received and processed. The RF front end includes components that handle conversion of analog RF signals to digital signals and vice versa. This conversion enables effective communication between mobile devices and cellular towers.
The key RF front end components used in cellular and wireless systems are as follows.
Antennas : It is responsible for transmitting and receiving radio signals. They convert electrical signals into EM waves for transmission and vice versa for reception.
Duplexers : It allows use of single antenna for transmission and reception using same frequency band.
Filters : They are used to isolate and separate signals within specific frequency ranges ensuring that desired frequency band is transmitted or received.
Low Noise Amplifier (LNA) : It is used to amplify weak incoming signals from antennas while adding minimal noise to the signal.
Power Amplifier (PA) : It is used to amplify signal before transmission to the tower.
Frequency converters : These modules use RF mixers to convert IF frequency to RF frequency and vice versa. LOs are needed to perform these conversion tasks.
Phase shifters : It can adjust phase of a signal in real time. They are used in beamforming and phased array antenna systems to control direction of
transmitted or received signal.
Attenuators : They are used to control signal strength by introducing controlled amount of signal loss.
Switches : They are used to route signals between different components or parts of RF front end.

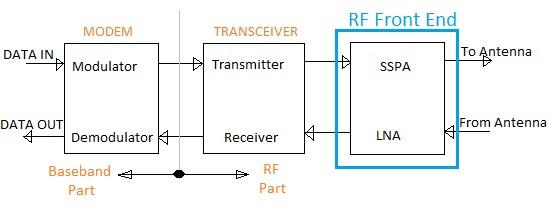

The figure-1 depicts typical components in a wireless transceiver unit. As shown it consists of two parts baseband and RF. The baseband part involves modem (modulator and demodulator). The RF part involves transmitter and PA (Power Amplifier) in the uplink and receiver and LNA (Low Noise Amplifier) in the downlink chain.
RF Front end mainly refers to LNA and PA modules used between antenna and RF transceiver. In few cases, entire RF part till baseband section is also considered as RF Front end. There are ICs available which house only LNA and PA functionalities. These ICs help in amplification of signal before transmission and after reception.

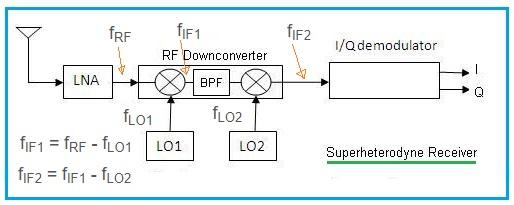

RF Transceiver has two components RF up converter (i.e. transmitter) and RF down converter (i.e. receiver). RF up converter converts IF frequency to RF frequency while RF down converter converts RF frequency to IF frequency. The RF up converter and down converter make use of RF mixers for conversion. There are two main variants for such conversion viz. homodyne and super heterodyne (as shown in figure-2). Homodyne uses one mixer while super heterodyne uses two mixers. Filters are also used in the chain in order to extract desired frequency products and reject all the others. Refer Design of RF Up Converter for more information.
RF Front End Manufacturers & Vendors
Following table mentions RF Front End Manufacturers and Vendors.
Manufacturers or Vendors | Description |
---|---|
Microchip | SST12LF09 - 2400 to 2500 MHz, GaAs pHEMT based structure |
Maxim Integrated | MAX2741 , MAX2830 |
Microsemi | LX5586HLL - LNA/PA |
TI | • CC 2591 - supports 2.4 GHz • CC1190 - supports 850 to 950 MHz |
ST | STA5630 - GPS/Galileo RF front end |
RFMW Ltd | • RFFM6904 (868 to 928 MHz) - manufactured by Qorvo • QPF4518 ( 5150 to 5925 MHz) by Qorvo |
Qualcomm | RF360 |
Mitsubishi Electric | Si-CMOS IC which supports dual band viz. 5 GHz and 60 GHz. |
Skyworks solutions | SKY66112-11 |
Linear Technology | LT®5500 |
Analog Devices | AD9361, RF transceiver with 2x2 MIMO support, housing 12 bit ADCs/DACs. |
Difference between RF Front End and RF Back End
• The RF front end refers to the initial stage of wireless communication system where RF signal from air is received and processed or transmitted.
The front end components handle the conversion of analog RF signals to digital signals and vice versa.
• The RF back end refers to the later stages of wireless communication system, where the processed signals from the RF front end
are further processed and decoded. The RF back end components handle digital signal processing (DSP), error correction
and conversion of the signal into a format that can be understood by the end user or device.
Conclusion : RF front end is focused on receiving and conditioning RF signals, while the RF back end handles the digital processing and data extraction from these signals. Both front-end and back-end stages are essential for ensuring reliable and efficient wireless communication. The specific components used in RF front end and back end design can vary depending on the cellular technology (e.g., 2G, 3G, 4G, 5G, 6G), wireless technology (WiFi, Zigbee, Bluetooth) and the frequency bands being utilized.
