RF Isolator: Types, Functions, Design, and Applications

RF isolators are vital in protecting sensitive microwave components by isolating reflected signals and ensuring signal flow in one direction. These devices are extensively used in communication systems, radar, and RF testing setups. This page explores the types, functions, and designs of RF isolators, shedding light on their symbolic representation and real-world applications.

An RF isolator is another passive, non-reciprocal device commonly used in microwave and radio frequency systems. The primary function of an RF isolator is to provide unidirectional signal flow while minimizing the impact of reflected signals. It is a two-port device made of magnets and ferrite material used to protect RF components or equipment connected at one port from the reflection of the other port.

RF Isolator is basically a circulator with the third port terminated. The key features and functions of RF isolators include:

• Like RF circulators, they are designed to allow signals to flow in only one direction. As shown they are 3 port devices in which signal enters through one port and exits through another port and third port is terminated.
• It provides high isolation between input and output ports.
• They are effective in reducing reflections from mismatched loads.
• By providing a one-way path for signals, isolators shield sensitive components, such as amplifiers and transmitters, from potentially damaging reflections.
• They are commonly used in antenna systems to prevent reflected signals from reaching the transmitter.
• They are used in duplex communication systems to separate transmit and receive paths.
• They are used in test setups to prevent reflections and ensure accurate measurements.

RF Isolator Types

RF isolators come in various types, each designed for specific applications and operating conditions. RF Isolators are mainly of two types: Drop-in and coaxial isolator. Here are some common types of RF isolators.

1. Ferrite Junction Isolator: This type of isolator uses ferrite material in a junction configuration to achieve non-reciprocal behavior and provide isolation between input and output ports.
2. Coaxial Isolator: They are designed with a coaxial structure, where the central conductor is surrounded by ferrite material. They are suitable for applications where coaxial connections are prevalent, such as RF testing with equipment.
3. Drop-in Isolator: It is designed to be inserted into a specific location within a circuit or system. It is compact and convenient for integration into existing setups. Drop-in isolator is used in the design of RF (radio frequency) modules using micro-strip technology where in both the input and output ports are matched on the micro-strip PCB. Used in the design of RF Transceiver, Power Amplifier, LNA etc.
4. Waveguide Isolator: They are designed for waveguide-based systems, where the signal travels through a waveguide structure with ferrite material to achieve non-reciprocal behavior.
5. Microstrip Isolator: They are designed for planar circuit applications, offering compact solutions for microwave integrated circuits (MICs).
6. Surface Mount Isolator: They are designed to be mounted directly on the surface of a printed circuit board (PCB). They are convenient for applications where space is limited, and ease of integration is important.
7. Dual Junction Isolator: They incorporate two ferrite junctions to enhance isolation and reduce the impact of reflections. They are often used in applications where higher isolation is required.

RF Isolator Design

Following are the common specifications to be considered for selection and design of isolator.

• Frequency range (example : 700-800MHz)
• Isolation (example : 20dB )
• Insertion Loss (example : 0.4 dB)
• VSWR (example : 1.25 )
• Connectors (example : SMA-Female)

Following steps mentions basic design guidelines for RF isolators.

• Select the appropriate type of isolator as per specific requirements and specifications as mentioned above.
• Determine required level of isolation between input and output ports. Balance the trade-off between isolation and insertion loss.
• Consider the power levels that the isolator needs to handle.
• Ensure that the isolator’s impedance matches that of the connected components in the system to minimize reflections and maximize power transfer.
• Optimize isolator performance over desired temperature range. Also consider the environmental conditions of the application, such as humidity and vibration.
• Verify that the isolator operates within the desired frequency range for your application.
• Consider the manufacturing tolerances and variations in performance. Ensure that the isolator meets the required specifications under practical manufacturing conditions.

RF Isolator with high isolation and low insertion loss is best choice for the buyer. These type of RF isolator delivers high performance in the system.

RF Isolator Applications

RF isolators find applications in various fields where unidirectional signal flow, isolation between ports, and protection of RF components from reflections are essential. They are used in base stations in cellular networks, satellite communication systems, radar systems, RF front end modules in wireless devices, medical equipment, laboratory instruments and test rigs, waveguide systems etc. Here are common applications of RF isolators:

• Transmitter protection
• Amplifier protection
• To separate transmit and receive paths in duplex communication systems.
• Protection of sensitive test equipments during measurement
• Used in MRI systems, to manage signal flow and prevent reflections from affecting the imaging process.

Case Study: Use of Isolator in RF Frequency Converters

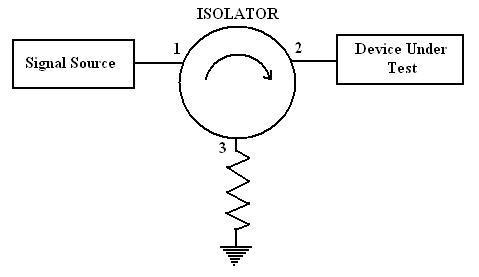

For example as shown in the figure, signal source is used to feed signal to the device under test (DUT) through Isolator, this helps signal source being damaged due to unwanted reflection from DUT. The RF isolator symbol is shown between the source and DUT. The symbol depicts signal flow in clockwise direction.

RF Isolator is used in the design of RF Frequency converters. Refer our article on ‘Design of RF Frequency Converter ’ wherein RF Isolator is used after MO44M Mixer which helps protect RF components from excessive reflection in the reverse direction.

As mentioned in the specifications Port 1 to Port 2 offers very less insertion loss hence allows the signal to pass through very easily. While Port 2 to Port 1 offers Isolation of 20dB hence limits reflected signals reaching to port 1 and hence stops damage. Moreover any reflected signals will be dissipated in load connected at port 3.

Conclusion

In summary, RF isolators play a crucial role in minimizing reflections and protecting RF components from potential damage caused by reflected signals. They find widespread use in various microwave and RF systems, contributing to improved signal quality and system reliability.
