Difference between RF isolator vs circulator in Microwave
In the world of RF and microwave engineering, isolators and circulators are essential components used to manage signal flow in communication systems. They are both passive microwave devices made of ferrite material. While both devices are designed to control and direct RF signals, they serve different purposes and have unique working principles. This guide delves into the key differences between RF isolators and circulators, exploring their construction, functionality and applications.
RF Isolator
RF isolator is a 2 port device. It is unidirectional.
It is mainly used to avoid reflections from its output to the input port,
hence prevent damage to the device/component connected to its input port.

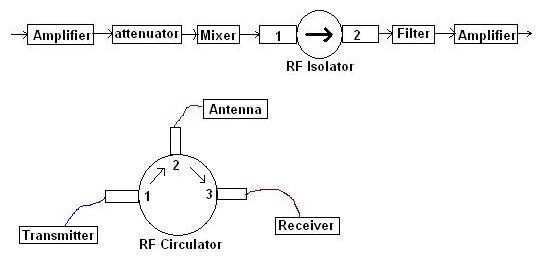

As shown in the figure it can pass signal from 1 to 2 port.
Refer How RF Isolator Works>>.
As shown, it allows RF signals to pass in one direction (i.e. from port-1 to port-2) while blocking them in the opposite direction (i.e. from port-2 to port-1). It offers isolation from port-2 to port-1 which prevents reflections from returning to the source side components.
RF Circulator
RF circulator is a 3 port device. It is mainly used to make use of the single antenna between both the transmitter and receiver by connecting them appropriately at its ports. It can pass signal from (1 to 2)/(2 to 3)/(3 to 1) OR from (3 to 2)/(2 to 1)/(1 to 3) based on clockwise or anti-clockwise design.
As shown at port 1 transmitter is connected , port 2 the antenna and port-3 receiver is connected. If the rf circulator is clockwise type, When the signal at port-1 is applied,which is from transmitter,it is transmitted by antenna. And when some signal is received by antenna, it is directed to the receiver connected at port-3. Refer How RF Circulator Works>>.
Difference between isolator and Circulator
Following table compares RF isolator vs circulator in Microwave domain and explore comparison between them.
| Features | RF Isolator | RF Circulator |
|---|---|---|
| Function | Allows signal transmission in one direction while blocking in the opposite direction | Routes signals from one port to the next sequentially, providing isolation between ports |
| Number of ports | Two | Three |
| Isolation | High isolation between input and output ports | Provides isolation between ports, but typically lower between adjacent ports compared to input/output |
| Directionality | Unidirectional | Bidirectional in a specific direction |
| Complexity | Generally simpler | More complex |
| Cost | More affordable | May be costlier |
| Applications | Prevents signal reflections, used in RF amplifiers, mixers, antennas | Signal routing and isolation between multiple components, used in radar systems, RF test equipment, communication systems |
Conclusion
RF isolators and circulators play vital roles in ensuring efficient signal management in RF and microwave systems. While isolators are designed to allow unidirectional signal flow, circulators facilitate multi-port signal routing with minimal loss. Recognizing their differences in terms of design, functionality and applications can guide you in selecting the right component for your specific needs. By leveraging these devices effectively, you can enhance the performance and reliability of your communication systems.
