TLS vs DTLS | Difference between TLS and DTLS

This page compares TLS vs DTLS and mentions difference between TLS vs DTLS types. It mentions basics of TLS and DTLS security protocol types.

Introduction
TLS operates on top of the TCP layer but below the application layer. It can be considered as top sublayer for the Layer-4. DTLS is based on TLS protocol and provides equivalent security guarantees. DTLS protocol provides communications privacy for datagram protocols. Both of these protocols delivers data communication security over computer network. They are widely used in email, web, VoIP and other messaging applications.

What is TLS?

TLS SSL encryption

TLS encryption protocol provides secure transport connection between applications (e.g. web server and browser). The main goal of TLS is as follows:
• Establish session by agreeing on algorithms, sharing secrets and performing authentication.
• Transfer application data with the use of symmetric encryption and data integrity (e.g. keyed message authentication code).

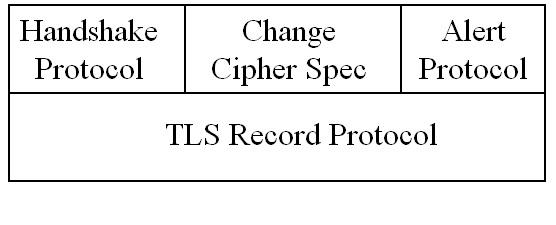

TLS architecture fig1

• TLS stands for Transport Layer Security.
• TLS uses record protocol to transfer application and TLS information.
• A session is established using handshake protocol.

TLS architecture fig2

Other layers of TLS are same as SSL and TLS 1.0 is equivalent to SSL V3.1. These have been depicted in the figure above.

TLS Versions-TLS 1.0, TLS 1.1, TLS 1.2

Following table mentions features of TLS versions e.g. TLS 1.0, TLS 1.1 and TLS 1.2.

TLS Version Description
TLS 1.0 It is defined in RFC 2246, in the year 1999. It is upgrade of SSL V3.0.
TLS 1.1 It was defined in RFC 4346 (April 2006). It is upgrade version of TLS V1.0. It adds protection against CBC attacks.
TLS 1.2 It was defined in RFC 5246 (August 2008).

Also refer difference between TLS vs SSL encryption types >> for difference between TLS and SSL protocol types.

What is DTLS?

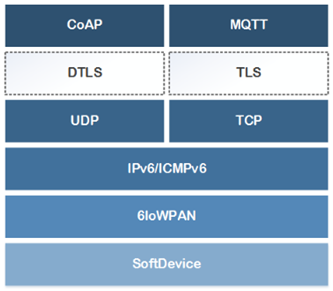

TLS vs DTLS-difference between TLS and DTLS

• DTLS stands for Datagram Transport Layer Security protocol.
• It is defined in RFC 6347 (V1.2)
• DTLS provides UDP based transport while using TLS security. As a result, as with UDP, it does not re-order or re-transmit packets.
• Following table mentions handshake difference between TLS and DTLS.

Field TLS DTLS
RFC RFC 4346 (V1.1), RFC 5246 (V1.2), RFC 8446 (V1.3) RFC 6347 (V1.2)
Function It must run over a reliable transport channel based on TCP. It cannot be used to secure unreliable datagram traffic. It is used to construct "TLS over datagram".
Runs above which Protocol TLS covers both security for TCP and UDP transport types. DTLS is implied if the transport type is UDP.
Message Type 1 1
Message Length 3 3
Message Sequence Number Does not exist 2
Fragment Offset Does not exist 3
Fragment Length Does not exist 3
Role Client only Server and Client
