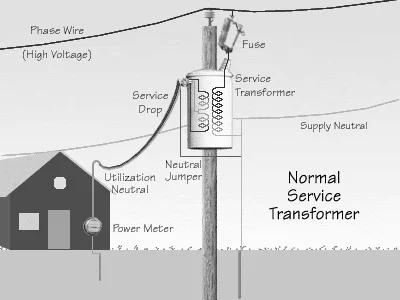

What is Power line transformer ?
A power line transformer is a type of transformer specifically designed for use in electrical power distribution systems. Its primary function is to facilitate the efficient transmission of electrical energy from power plants to end-users by stepping up or stepping down the voltage level of the electric power. Power line transformers are critical components in the power grid infrastructure and are commonly found in substations and along transmission and distribution lines.
Power line transformers come in various sizes and configurations, depending on the specific requirements of the power grid and the characteristics of the transmission and distribution systems they serve. They are essential components for ensuring the reliable and efficient delivery of electrical power to end-users.
The capacity of power line transformers is usually specified in volt-amperes (VA) or kilovolt-amperes (kVA) for smaller transformers and in megavolt-amperes (MVA) or gigavolt-amperes (GVA) for larger transformers. Based on the power requirements of the area, different capacity of the power line transformers are installed.
The key aspects of power line transformers are as follows.
➨Voltage Transformation: One of the primary functions of a power line transformer is to transform the voltage
of electrical power. It can step up the voltage for long-distance transmission, reducing energy losses over the
transmission lines, and step down the voltage near the end-users for safe and efficient distribution.
➨High Voltage (HV) and Low Voltage (LV) Windings: The HV winding is connected to the high-voltage side of the power system,
while the LV winding is connected to the low-voltage side.
➨Core Types : There are two cores viz. core form or shell form.
The core is usually made of laminated iron or steel sheets to provide a magnetic path and reduce eddy current losses.
➨Cooling Systems: Large power line transformers often incorporate cooling systems to dissipate the heat generated during operation.
Common cooling methods include oil cooling, where the transformer is immersed in oil, or forced-air cooling,
where fans circulate air around the transformer.
➨Tap Changers: Some power line transformers are equipped with tap changers, allowing for
adjustments to the turns ratio and, consequently, the output voltage.
This feature helps accommodate variations in the incoming voltage or changes in the load.
➨Oil Conservators: Large transformers often have oil conservators, which are tanks connected to the transformer
for managing the expansion and contraction of the insulating oil as it heats and cools during operation.
➨Bushings and Insulation: Bushings are used to insulate and connect the high-voltage and low-voltage windings
to the external electrical system. The transformer is also equipped with various insulation materials to ensure the safe
and reliable operation of the equipment.
➨Substation Applications: Power line transformers are commonly found in electrical substations,
where they connect to transmission lines and step down the voltage for distribution to local areas.
➨Grid Stability: Power line transformers play a crucial role in maintaining the stability
and reliability of the power grid by enabling the efficient transfer of electrical energy across different
voltage levels.
Power line transformer applications
Applications of power line transformers are as follows. These applications highlight the versatility and
importance of power line transformers in various sectors, contributing to the reliable and efficient functioning
of electrical power systems.
• Used in electrical substations both at transmission and distribution levels by either stepping up
or stepping down the voltage as required for efficient power transfer.
• Industries often require specific voltage levels for their equipment. Power line transformers are used to
match voltage requirements.
• For specific electrical power needs of office buildings, shopping malls and
other commercial buildings and complexes.
• Steps down voltage to the requirements of residential areas for safe and efficient distribution of electricity to homes.
• It helps to integrate renewable energy sources such as wind, solar power into the grid.
They help to match variable output of these renewable sources with the demand of the electric grid.
• It is used in railway electrification systems to provide necessary voltage levels for powering
the electric trains and its infrastructures.
• Used as isolation transformers to provide electrical isolation between different parts of a
system, enhancing safety and minimizing the risk of ground faults.
• Transformers with tap changers are used for voltage regulation which is essential to maintain stable voltage level in the power grid.
• Power line transformers are utilized in the oil and gas industry to provide reliable power for various operations, such as drilling and refining processes.
• Emergency Power Systems which enaures reliable power supply to critical facilities such as hospitals, data centers, and emergency response centers.
Advantages of power line transformer
Following are the benefits or advantages of power line transformer.
1. One of the primary benefits of power line transformers is their ability to
transform voltage levels. Transformers can step up or step down the voltage of electrical power,
facilitating efficient power transfer over long distances and adapting the voltage for distribution to end-users.
This capability is essential for matching the voltage levels of power generation sources, transmission lines,
and distribution networks.
2. Power line transformers play a crucial role in reducing power losses during electrical energy transmission.
By stepping up the voltage at the generation end, power losses are minimized as the current is reduced
according to the power formula (P = VI). Lower current levels result in lower resistive losses along the
transmission lines, enhancing overall system efficiency.
3. Power line transformers contribute to grid stability and reliability by providing a
means to control and regulate the voltage levels within the power system. Transformers help maintain a
consistent voltage profile, ensuring that electrical equipment and appliances receive a stable power supply.
This is vital for the proper functioning of electrical devices and the overall stability of the power grid.
4. Power line transformers enable the interconnection of different regions or countries by
facilitating the transfer of electricity between power grids with varying voltage levels.
Transformers at interconnection points allow for the integration of power generated in one region with the demand in another,
promoting energy exchange and grid reliability.
5. Power line transformers provide flexibility in power system design and adaptability
to changing load conditions. Transformers with tap changers allow for adjustments to the turns ratio,
enabling voltage regulation and accommodating variations in the incoming voltage or changes in the load.
This flexibility enhances the resilience and responsiveness of the power system to dynamic operating conditions.
Conclusion : In summary, power line transformers are integral to the efficient and reliable operation of electrical power systems. Their ability to transform voltage, reduce power losses, contribute to grid stability, facilitate interconnection, and provide flexibility makes them essential components in the transmission and distribution of electrical energy.
