LoRaWAN Frequency bands, data rate, EIRP Australia (AU region)

This page describes LoRaWAN Frequency bands and channels used in Australia (AU region).It also mentions data rate and Tx power (i.e. EIRP).

LoRaWAN frequency bands, channels, EIRP and data rate requirements are specific to different parts of the world. Let us check these values for AU (Australia).

What is LoRaWAN frequency bands used in Australia ?

Band AU915-928 which covers 915 MHz to 928 MHz is used in Australia for LoRaWAN system. Channel frequencies used are divided as follows.
➨In upstream, 64 channels are starting at 915.2 MHz till 927.8 Mhz with linear spacing of 200 KHz.
➨In upstream, 8 channels are starting at 915.9 MHz till 927.1 MHz with linear spacing of 1.6 MHz.
➨In downstream, 8 channels are starting at 923.3 MHz till 927.5 MHz with linear spacing of 600 KHz.

The table also mentions modulation, BW (125 KHz), channels, bit rate and duty cycle.

LoRaWAN data rates in Australia

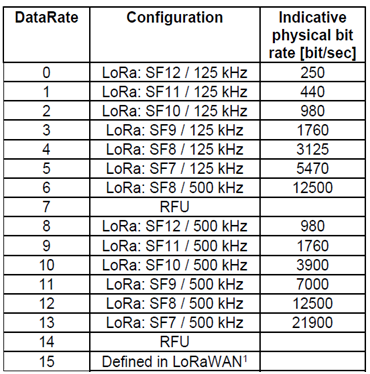

Following table mentions bit rate or data rate for Australia LoRaWAN end device.

Australia LoRaWAN data rates

LoRaWAN Transmit (Tx Power) and EIRP in Australia

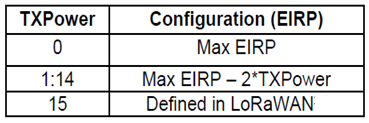

The table below mentions Tx Power and EIRP for LoRaWAN Australia region.

Australia LoRaWAN Tx Power EIRP

The Maximum EIRP (Equivalent Isotropically Radiated Power) is considered to be +30dBm.

LoRaWAN frequency Bands in other regions of the world

• 902 to 928MHz RF Band is used in US.
• 433 to 434 MHz RF band is used in EU region.
• 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz LoRaWAN bands are used in CHINA.

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org.
