Understanding Jakes' Model: Formula and Basics

channel model jakes model rayleigh fading matlab code wireless communication

Jakes’ Channel Model is a widely used statistical model for simulating Rayleigh fading in wireless communication channels, particularly useful for understanding the behavior of signals in mobile radio environments. This page dives into the fundamentals of Jakes’ Model and presents the Jakes’ model formula. You’ll also find links to channel models implemented in MATLAB.

One of the most well-known fading channel models was introduced by Jakes. He proposed a model for Rayleigh fading that’s based on summing sinusoids. Jakes’ model helps simulate the multipath fading effects that occur when a transmitted signal takes multiple paths to reach the receiver, each path having a different delay, phase shift, and Doppler shift due to relative motion.

Jakes’ Model Formula or Equation

The following section details Jakes’ model, complete with its formula and equations.

Jakes model formula or equation-1

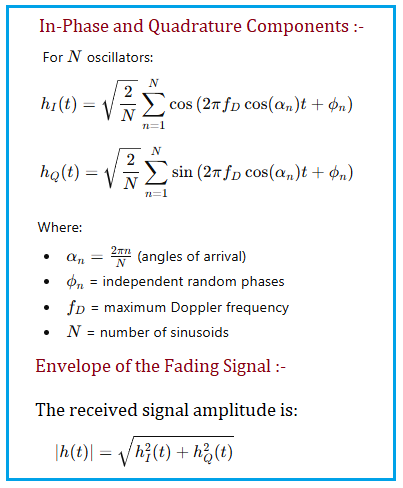

Jakes model formula or equation-2

Jakes model formula or equation-3

Applications

  • Simulating Rayleigh fading channels for mobile communications
  • Performance analysis of modulation and coding schemes
  • Testing diversity techniques (e.g., MIMO, antenna diversity)
  • Evaluating mobile system performance in urban environments

Limitations of Jakes’ model

  • Assumes isotropic scattering (scatterers are uniformly distributed)
  • Assumes no Line of Sight component (Rayleigh fading only)
  • Not suitable for modeling frequency selective or Rician fading unless modified
